Hazard warning flasher actuation function - GF82.10-P-3009T

MODEL 211.0 /2 up to 31.5.06 except CODE (494) USA version except CODE (498) Japan version

MODEL 211.0 /2 up to 30.6.06 with CODE (494) USA version with CODE (498) Japan version

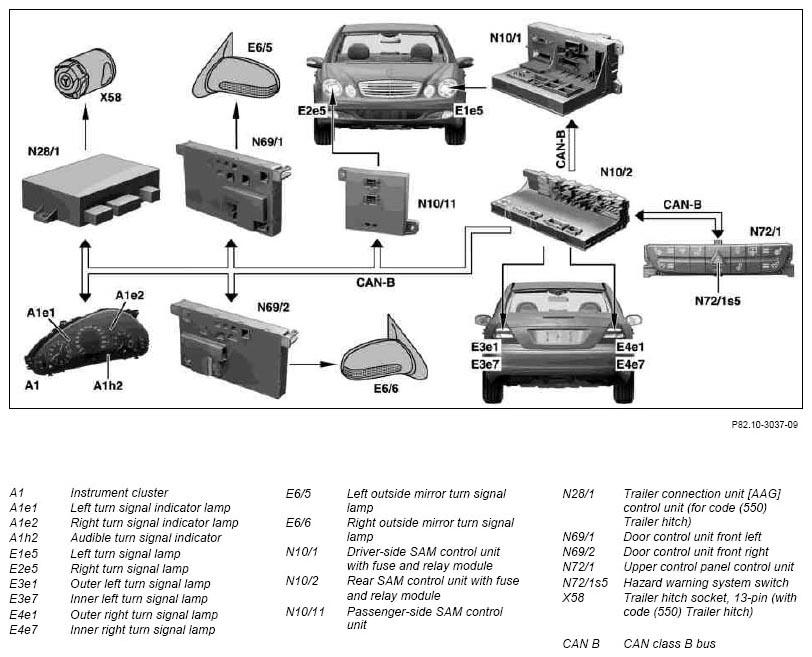

Fig 1: Networking Of Hazard Warning Flasher Actuation Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Networking of components, shown on model 211.0

Function requirements:

Hazard warning system switch (N72/1s5) is operated
Circuit 30

Function

The upper control panel control unit (N72/1) acquires the applied position of the hazard warning flasher system switch (N72/1s5) and transmits "hazard warning flasher On" to the rear SAM control unit with fuse and relay module (N10/2) via CAN class B.

This then actuates the following lamps:

Outer left turn signal lamp (E3e1)
Inner left turn signal lamp (E3e7) (model 211.0 only)
Outer right turn signal lamp (E4e1)
Inner right turn signal lamp (E4e7) (model 211.0 only)

The rear SAM control unit with fuse and relay module (N10/2) transmits signals to the individual control units via CAN class B:

The driver-side SAM control unit with fuse and relay module (N10/1) actuates the left turn signal lamp (E1e5).
The passenger-side SAM control unit (N10/11) actuates the right turn signal lamp (E2e5).
The left front door control unit (N69/1) actuates the left outside mirror turn signal lamp (E6/5).
The right front door control unit (N69/2) actuates the right outside mirror turn signal lamp (E6/6).

The instrument cluster (A1) both visually and audibly indicates the turn signal procedure, by actuating the left turn signal indicator lamp (A1e1) and right turn signal indicator lamp (A1e2) as well as the audible turn signal indicator (A1h2).

The flashing frequency is 1.5 Hz. The flashing cycle differentiates between "circuit 15R ON", 52 to 48 % (ON to OFF) and "circuit 30 ON", 35 to 65 % (ON to OFF).

Hazard warning signals if airbag deployed

In the event of airbag deployment, a "crash signal" is transmitted to the rear SAM control unit with fuse and relay module (N10/2) by the restraint systems control unit (N2/7) via CAN class B. This activates the hazard warning flasher function.

The hazard warning system function is switched off by pressing the hazard warning system switch (N72/1s5) in the upper control panel control unit (N72/1).

For vehicles with code (550) Trailer hitch, the signal "hazard warning On" is transmitted by the rear SAM control unit with fuse and relay module (N10/2) to the trailer connection unit [AAG] control unit (N28/1), which applies the signal "hazard warning On" to the trailer hitch socket (13-pin) (X58).

Driver-side SAM control unit with fuse and relay module, location/task/design		GF54.21-P-4109T
Front passenger-side SAM control unit with fuse and relay module, location/task/design		GF54.21-P-4111T
Rear SAM control unit with fuse and relay module, location/task	Model 211.0	GF54.21-P-4130T
	Model 211.2	GF54.21-P-4130TA
Upper control panel control unit, location / task / design / function	Model 211.0	GF54.21-P-4105T
	Model 211.2	GF54.21-P-4105TS
Driver front door control unit, location/task		GF72.29-P-4115T
Passenger-side front door control unit, location/task		GF72.29-P-4116T
Instrument cluster (IC), location / task		GF54.30-P-3039T
Trailer recognition control unit, location/task	With code (550) Trailer hitch	GF82.10-P-2106T
