Upper control panel control unit, location/task/design/function - GF54.21-P-4105T
Model 211.0 /6

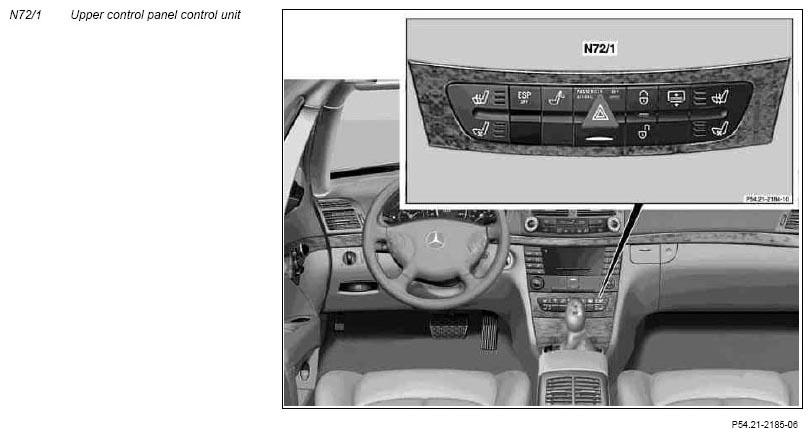

| Upper control panel control unit, location | The upper control panel control unit (N72/1) is located below the audio unit in the central area of the dashboard. | |
| Upper control panel control unit, task | GF54.21-P-4105-02T | |
| Upper control panel control unit, design | GF54.21-P-4105-03T | |
| Upper control panel control unit, function | The upper control panel control unit (N72/1) operates with its own dedicated microprocessor which scans switches, actuates appropriate semiconductor switches and exchanges data with the interior CAN. |
