Remove/install fiber optic cable for the Media Oriented System Transport (MOST) - AR82.60-P-0001TI
MODEL 211.0 /2 up to 1.6.08 except CODE (809) Model year 2009 between fiber optic cable connector (MOST) and audio gateway control unit
Shown on model 211.0

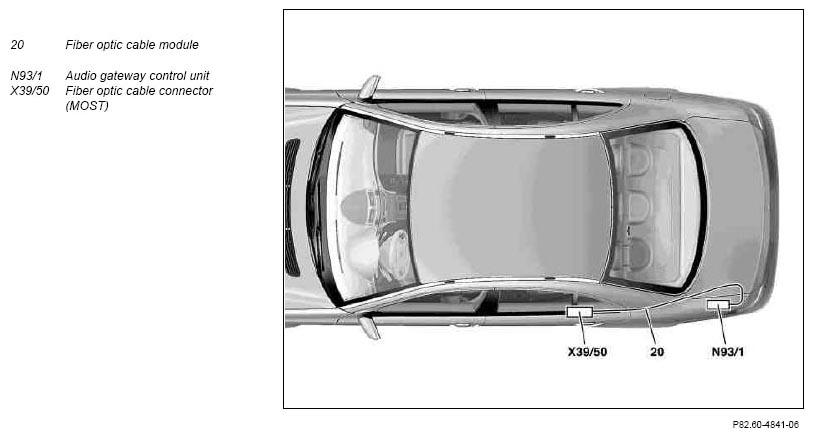

Fig 1: Identifying Fiber Optic Cable Module, Audio Gateway Control Unit And Fiber Optic Cable Connector (MOST)

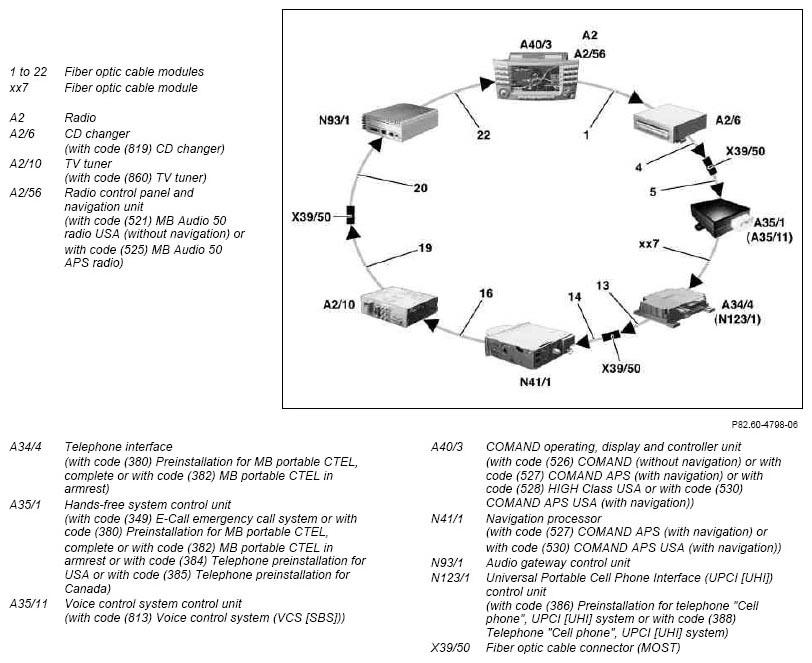

Ring sequence of the fiber optic cable for the Media Oriented System Transport (MOST), shown for maximum equipment
| Remove/install | |||
| Notes on removal/installation of the fiber optic cable for the Media Oriented System Transport (MOST) | AH82.60-P-0001-06T | ||
| 1 | Remove cargo retainers in left rear legroom | ||
| 2 | Remove left rear door sill molding | ||
| 3 | Remove rear seat cushion | Model 211.0 without code (287) Through-loading feature | AR91.12-P-1020T |
| Model 211.0 with CODE (287) Through-loading feature | AR91.12-P-1020TA | ||
| Model 211.2 | AR91.12-P-1020TB | ||
| 4 | Remove side bolster and cover next to left rear seat backrest | Model 211.0 | |
| 5.1 | Remove side paneling on left side of rear compartment | Model 211.2 | AR68.30-P-4780T |
| 5.2 | Remove side paneling in left side of luggage compartment | Model 211.0 without code (287) Through-loading feature and without code (924) Bivalent natural gas drive | AR68.30-P-4800T |
| Model 211.0 with CODE (287) Through-loading feature | AR68.30-P-4800TA | ||
| Model 211.0 with code (924) Bivalent natural gas drive | AR68.30-P-4800TB | ||
| 6 | Fully open left rear cable duct | ||
| 7 | Remove fiber optic cable module for Media Oriented System Transport (MOST) | AR82.60-P-0001-01TI | |
| Notes on avoiding damage to fiber optic cables during repair work | AH82.60-P-0001-05AK | ||
| 8 | Install in the reverse order | ||
| 9 | Connect STAR DIAGNOSIS, read out fault memory and erase if necessary | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 10 | Carry out start-up and function test |
