Retrofit rear-entertainment with two screens - AZ82.60-P-0015TX

MODEL 219.3

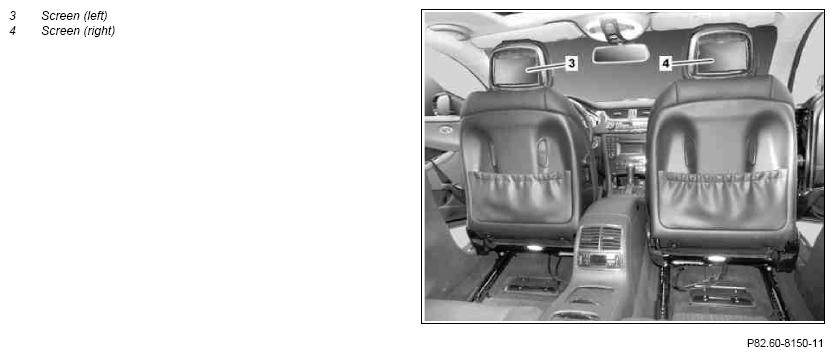

Fig 1: Identifying Rear Entertainment Screens

Courtesy of MERCEDES-BENZ USA

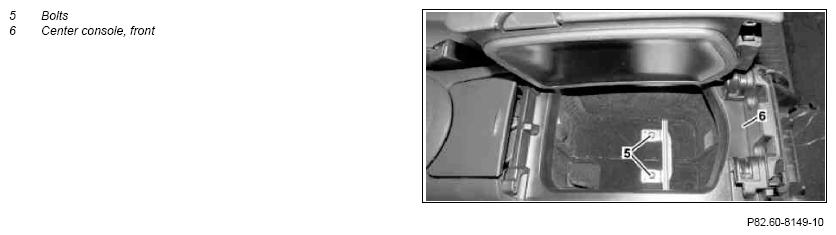

Fig 2: Identifying Front Center Console

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove rear center console		AR68.20-P-2020TX
2	Remove screws/bolts (5) from front center console (6)
3	Loosen front seats		AR91.10-P-1000TX
4.1	Loosen left and right head restraint drive	On vehicles with  code (275) Memory package (driver seat, steering column, mirrors) and with  code (242) Electrically adjustable front passenger seat with memory Do not completely remove head restraint or head restraint drive, simply loosen them.	AR91.29-P-1432TX
4.2	Move left and right front seat head restraint all the way to the top	On vehicles without  code (275) Memory package (driver seat, steering column, mirror) and without  code (242) Electrically adjustable front passenger seat with memory
5	Detach right front dynamic multicontour seat control unit	On vehicles with  code (434) Right dynamic seat, incl. multicontour seat In doing so, do not disconnect pneumatic lines.	AR91.25-P-1800TX
	Install
6	Retrofit bracket of screens (3, 4)		AZ82.60-P-0015-04TX
			*BA82.60-P-1001-01A
7	Retrofit rear entertainment wiring harness	Make sure that the wiring harnesses are not damaged by chafing, pinching or crushing, as otherwise the corresponding wiring harness may have to be replaced.
		Vehicles with  code (242) Electrically adjustable front passenger seat with memory.	AZ82.60-P-0015-02TX
		Vehicles without  code (242) Electrically adjustable front passenger seat with memory.	AZ82.60-P-0015-02TY
8	Retrofit rear entertainment control unit		AZ82.60-P-0015-01TX
9	Retrofit screens (3, 4)		AZ82.60-P-0015-03TX
10	Install remaining parts
11	Program rear entertainment infrared channel		AZ82.60-P-0015-05GZ
12	Program rear entertainment regional code		AZ82.60-P-0015-06GZ
13	Connect Star Diagnosis
14	Code head restraint height through Diagnosis Assistance System	On vehicles with  code (275) Memory package (driver seat, steering column, mirrors) or with  code (242) Electrically adjustable front passenger seat with memory The head restraint height must be coded to prevent a collision of the head restraint with the screens (3, 4).
15	Disconnect Star Diagnosis
16	Perform function test	See rear entertainment operating instructions.
17	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach "Rear entertainment with two screens retrofitted as per AZ82.60-P-0015TX " note under field organization text to design group 82.

REAR ENTERTAINMENT UNIT

Number	Designation		Model 164, 166, 204, 211, 212, 218, 219, 221, 251
BA82.60-P-1001-01A	Screw/bolt to rear entertainment unit bracket	Nm	19

PARTS ORDERING NOTES

Part no.	Designation	Quantity
see Odus	Parts kit for rear entertainment with two screens	1
