Remove/install dynamic seat control unit - AR91.25-P-1800TX
MODEL 219.3 with CODE (433) Left dynamic seat, incl. multicontour seat with CODE (434) Right dynamic seat, incl. multicontour seat
MODIFICATION NOTES
| 6.6.06 | "Disconnect/connect battery ground line" removed |
| Remove/install | |||
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Remove seat-back lining from front seat backrest | AR91.10-P-1910TX | |

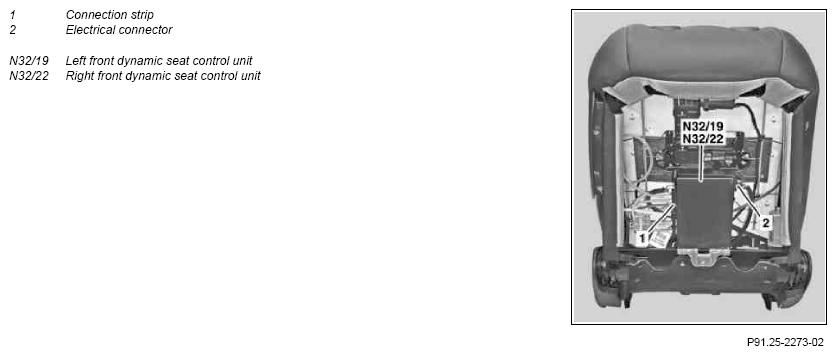

| 2 | Disconnect electrical connector (2) from left front dynamic seat control unit (N32/19) or right front dynamic seat control unit (N32/22) | ||
| 3 | Unclip connection strip (1) of pneumatic lines and pull off the left front dynamic seat control unit (N32/19) or right front dynamic seat control unit (N32/22) | ||
| 4 | Remove left front dynamic seat control unit (N32/19) or right front dynamic seat control unit (N32/22) upwards | ||
| 5 | Install in the reverse order |
