Remove/install rear center console - AR68.20-P-2020TX

MODEL 219.3

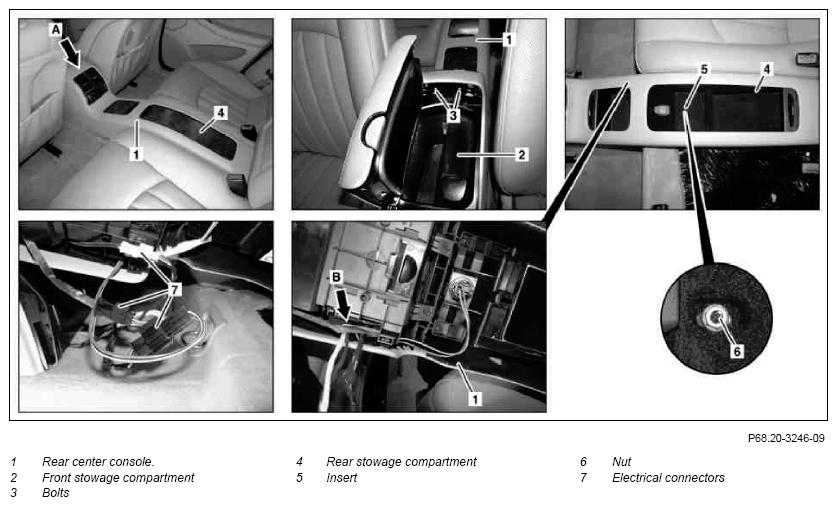

Fig 1: Identifying Rear Center Console Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Remove left or rear seat cushion		AR91.12-P-1020TX
2	Open cover on front stowage compartment (2)
3	Remove bolts (3)
4	Open rear stowage compartment (4) and remove insert (5)
5	Unscrew nut (6)
6	Forcefully pull rear center console (1) upward in front arrow (arrow A)	When doing this, the rear center console (1) is unclipped from the front stowage compartment (2).
7	Remove rear center console (1) from transmission tunnel and turn to side until the connector package (arrow B) is accessible
8	Pull connector package (arrow B) out of rear center console (1) and disconnect electrical connectors (7)	Number of electrical connectors (7) according to equipment.
9	Remove rear center console (1)
10	Install in the reverse order
