Remove/install front seat heat restraint motor - AR91.29-P-1432TX

MODEL 219.3 with CODE (242) Electrically adjustable front passenger seat with memory with CODE (275) Memory package (driver seat, steering column, mirrors)

Shown on vehicle up to 13.8.07

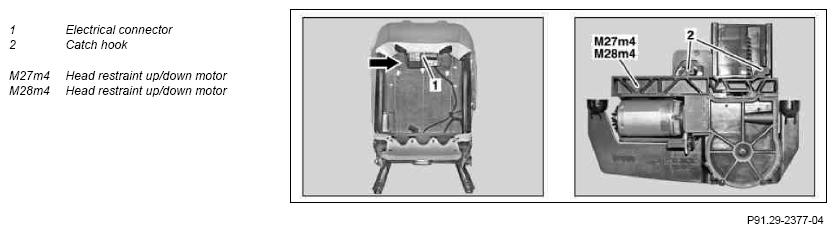

Fig 1: Identifying Front Seat Heat Restraint Motor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove head restraint on left or right front seat	Vehicles up to 13.8.07	AR91.16-P-0040TX
1	Remove head restraint on left or right front seat	Vehicles as of 14.8.07	AR91.16-P-0040CW
2	Release catch hooks (2) of head restraint up/down motor (M27m4 or M28m4) by sliding to the side (arrow)
3	Remove catch hook (2) of head restraint up/down motor (M27m4 or M28m4) and detach electrical connector (1)
4	Install in the reverse order
