Wiper system (WSA), function - GF82.30-P-0003CE
MODEL 204.0 /2 as of model year 2009 /YoM 08
MODEL 204.3
MODEL 204.9
Function requirements, general
- Circuit 15R ON
The electronic ignition lock control unit transmits the circuit status circuit 15 via the interior CAN.

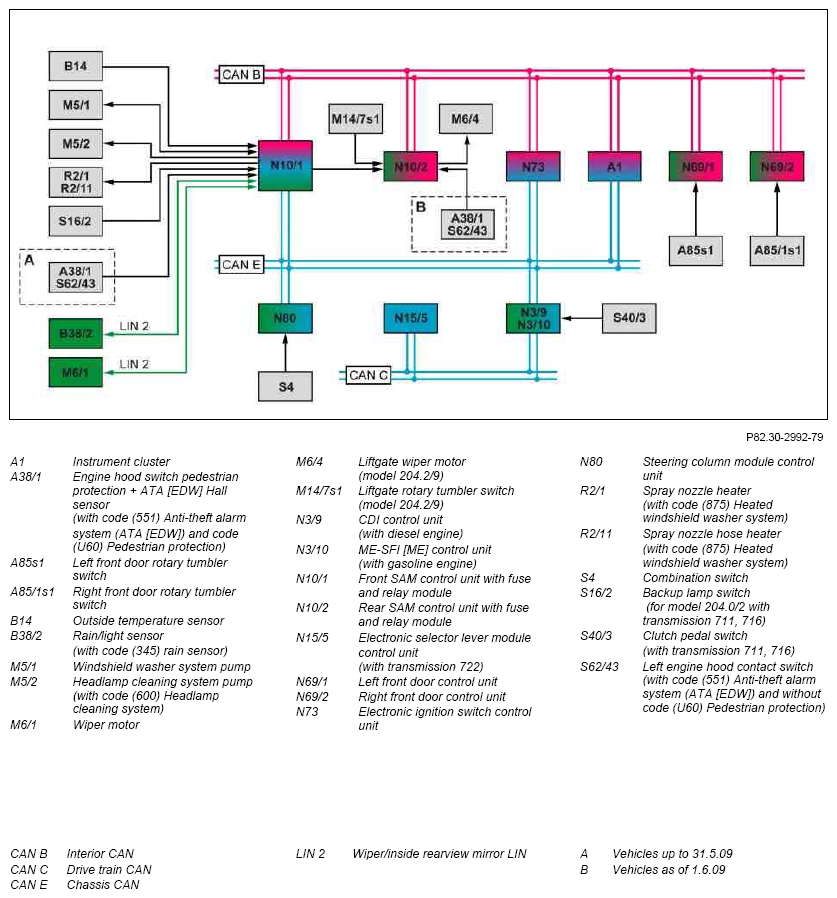

Wiper system, general
The wiper system controls the wiping and washing of the windshield and with model 204.2/9 the rear window.
The wiper system comprises the following subfunctions, which are described in separate documents:
- Windshield wiper, function
- Wiper start suppression function
- Wipe stop, function (with code (551) Antitheft alarm system (ATA [EDW])
- Automatic speed reduction of wiper system, function (without code (494) USA version)
- Windshield washer, function
- Headlamp cleaning system, function (with code (600) Headlamp cleaning system)
- Washer nozzle/washer nozzle hose heater function (with code (875) Heated windshield washer system)
- Rear window wiper system (WSA) function (with model 204.2/9)
| Windshield wiper, function | GF82.30-P-3004CE | ||
| Wiper start suppression function | GF82.30-P-3008CE | ||
| Wipe stop function | With code (551) Antitheft alarm system (ATA [EDW]) | GF82.30-P-3010CE | |
| Wiper system automatic speed reduction, function | Without code (494) USA version | GF82.30-P-4006CE | |
| Windshield washer, function | GF82.35-P-3002CE | ||
| Headlamp cleaning system, function | With code (600) Headlamp cleaning system | GF82.15-P-3000CE | |
| Washer nozzle/washer nozzle hose heater, function | With code (875) Heated windshield washer system | GF82.35-P-3003CE | |
| Rear window wiper system, function | Model 204.2/9 | GF82.30-P-2200CE |
