Remove/install propeller shaft - AR41.10-P-0050SYZ

MODEL 221, 216 with 4MATIC

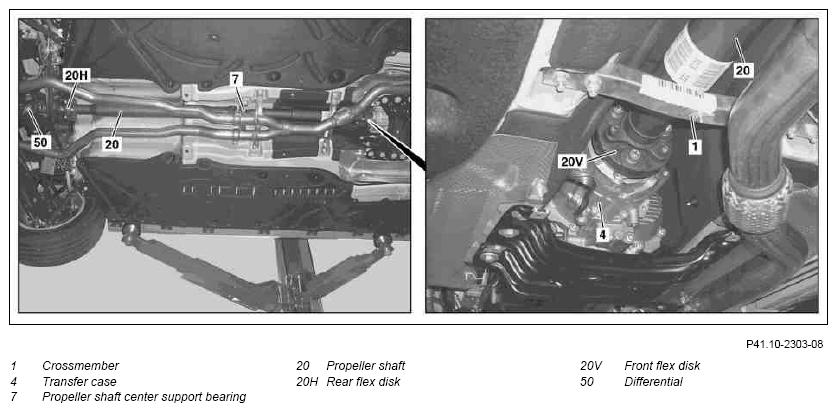

Fig 1: Identifying Propeller Shaft Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

25.6.10	Value modified: Self-locking nut, flexible coupling to transmission and front propeller shaft, M12		*BA41.10-P-1001-01H
	Value changed: Self-locking nut, flex disk to rear propeller shaft or rear axle differential M12		*BA41.10-P-1002-01H

	Remove/install
1	Move DIRECT SELECT gear selector switch to "N" position
2	Remove bottom engine compartment paneling		AR61.20-P-1105SX
3	Remove exhaust bracket in area of propeller shaft center support bearing (7) from underbody of vehicle		*BA61.10-P-1001-01G
			*BA61.10-P-1002-01G
4	Remove exhaust system from flange connection back	Only on vehicles with gasoline engine	AR49.10-P-7100SX
5	Remove vibration damper	Applies to vehicles with engine 272 only
6	Remove crossmember (1) on transmission tunnel		*BA62.30-P-1001-01F
7	Remove heat shield on underbody of vehicle
8	Mark position of propeller shaft (20) relative to flanges on transfer case (4) and rear axle differential (50)	This is to enable the ex-factory installation position to be restored during installation.
9	Undo bolts on propeller shaft center support bearing (7)		AR41.10-P-0050-10SX
		Installation: The bolts may only be tightened once the propeller shaft (20) on the transfer case (4) and rear axle differential (50) has been fastened firmly in place.	AR41.10-P-0050-11SX
			*BA41.40-P-1001-01E
10	Remove front flexible coupling (20V) from the transfer case (4)	The flex disk (20V) remains on the propeller shaft (20).	AR41.10-P-0050-02SX
		Installation: Mount propeller shaft (20) onto transfer case (4).	AR41.10-P-0050-07SX
			*BA41.10-P-1001-01H
11	Detach rear flex disk (20H) from rear axle center assembly (50)	The flex disk (20H) remains on the propeller shaft (20).	AR41.10-P-0050-03SX
		Installation: Mount propeller shaft (20) on rear axle center assembly (50).	AR41.10-P-0050-04SX
			*BA41.10-P-1002-01H
12	Loosen fitting sleeves in flex disks (20H, 20V)		AR41.10-P-0050-09SX
	Drift for loosening fitting sleeves in flex disks.		WF58.50-P-4110-01A
13	Secure propeller shaft (20) against falling down
14	Remove bolts from propeller shaft intermediate bearing (7) and remove propeller shaft (20) to the rear and downwards
	Checking
15	Check propeller shaft intermediate bearing (7) for wear and damage	If necessary: ↓ Remove/install propeller shaft intermediate bearing (7) and replace grooved ball bearing.	AR41.10-P-0100SX
16	Check centering sleeves for wear	If necessary:↓ Replace centering sleeve.	AR41.10-P-0200SX
17	Check flex disks (20H, 20V)
	Check propeller shaft flex disks for signs of damage and deformation		AP41.10-P-4152SX
18	Install in the reverse order

FRAME FLOOR ASSEMBLY

Number	Designation		Model 216	Model 221
BA61.10-P-1001-01G	Nut, front stiffening bridge to frame floor assembly	Nm	40	40
BA61.10-P-1002-01G	Bolt, rear stiffening bridge to frame floor assembly	Nm	23	23

CROSSMEMBER AND FRONT REINFORCEMENT

Number	Designation		Model 216	Model 221
BA62.30-P-1001-01F	Bolt, cross member to transmission tunnel	Nm	25	25

PROPELLER SHAFT CENTER SUPPORT BEARING

Number	Designation			Model 216	Model 221
BA41.40-P-1001-01E	Bolt, propeller shaft center support bearing to frame floor assembly	Self-tapping screw	Nm	25	25
BA41.40-P-1001-01E		Bolt with washer	Nm	-	30

PROPELLER SHAFT

Number	Designation			Model 216	Model 221
BA41.10-P-1001-01H	Self-locking nut, flex disk to transmission or front propeller shaft	M12	Nm	68	68
BA41.10-P-1002-01H	Self-locking nut, flex disk to rear propeller shaft or differential	M12	Nm	68	68
