Remove/install spring control arm on front axle - AR33.15-P-0170SY

MODEL 221.0 /1, 216 with CODE (487) Active Body Control (ABC)

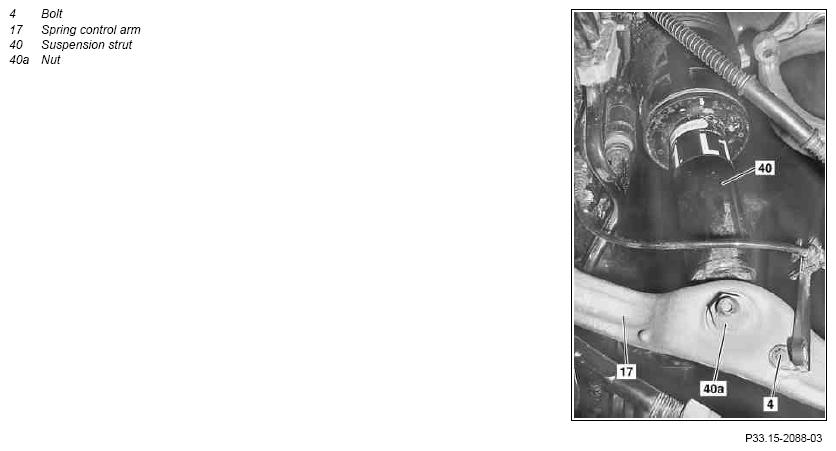

Fig 1: Identifying Front Axle Spring Control Arm Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

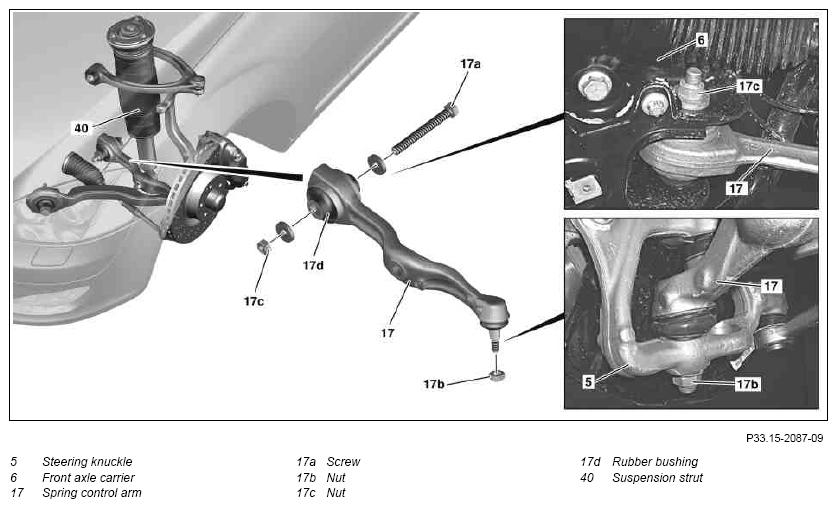

Fig 2: Identifying Front Axle Spring Control Arm Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

1.4.08

SWZ 171 589 00 34 00 replaced with SWZ 140 589 00 63 00 and SWZ 230 589 00 33 00 added

Operation step 6

	Remove/install
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	When working on the front-end assembly, be careful not to scratch, mark or notch the surfaces of aluminum parts. Otherwise the service life of the parts will be affected
	Notes on Active Body Control suspension		AH32.50-P-0001-01N
	Only tighten nuts and bolts of chassis components when vehicle is in a ready-to-drive condition.
1	Remove front wheel
	Remove/install wheels		AP40.10-P-4050SX
2	Remove engine compartment paneling		AR61.20-P-1105SX
3	Loosen nut (17c)	Do not twist bolt (17a). Always counterhold the bolt (17a) when slackening the nut (17c), otherwise the lock tabs for camber adjustment in the rubber mount (17d) will be sheared off. Installation:  Screw nut (17c) of bolt (17a) all the way on until it abuts, but do not tighten yet so that the rubber mount (17d) can twist when the vehicle is rocked to settle the suspension. Do not tighten nut (17c) until in ready-to-drive condition.
			*BA33.20-P-1005-01M
4	Remove bolt (4) from spring control arm (17)		*BA42.30-P-1002-01J
5	Remove nut (40a) from spring control arm (17)		*BA32.25-P-1007-04L
6	Press suspension strut (40) out of spring control arm (17) using puller and thrust piece	Model 221 with nut (40a) M14	Fig 3
		Model 221 with nut (40a) M14	Figure
		Model 216, 221 with nut (40a) M16	Fig 6
		Model 216, 221 with nut (40a) M16	Fig 5
7	Detach spring control arm (17) from steering knuckle (5)		AR33.15-P-0170-01SX
			*BA33.20-P-1003-01M
			Figure
8	Pull bolt (17a) out of front axle carrier (6)
9	Remove spring control arm (17) downwards
	Checking
10	Check rubber mount (17d) in spring control arm (17) for damage	Replace rubber bushing (17d), if necessary: ↓
		Extract/press in rubber mount on spring control arm.	AR33.15-P-0170-02SX
			Figure
			Figure
11	Check rubber boot and supporting joint in spring control arm (17) for damage	If necessary: Replace spring control arm (17).
12	Check rubber boot and ball joint in suspension strut (40) for damage	Replace suspension strut (40), if necessary: ↓ Remove/install front suspension strut.	AR32.25-P-1017SY
13	Install in the reverse order
14	Perform wheel alignment check		AR40.20-P-0200SX

WHEEL LOCATION, HUB

Number	Designation				Model 216 without 4MATIC	Model 221.00/02/05/07/09/10/12/15/17/19 without 4MATIC without code Z07/Z07+Z19
BA33.20-P-1003-01M	Self-locking nut, track control arm to stub axle		Stage 1	Nm	40	40
			Stage 2	∠°	150	150
BA33.20-P-1005-01M	Self-locking nut, spring control arm to front axle carrier		Stage 1	Nm	80	80
		Hexagon	Stage 2	∠°	150	150
		Torx	Stage 2	∠°	-	180

FRONT AXLE RPM SENSOR

Number	Designation		Model 216	Model 221
BA42.30-P-1002-01J	Bolt, RPM sensor wiring bracket to spring control arm	Nm	8	5

SUSPENSION STRUTS

Number	Designation			Model 216 without 4MATIC	Model 221 with code 487 (ABC)
BA32.25-P-1007-04L	Nut, front suspension strut to spring control arm	M14	Nm	-	110
		M16	Nm	200	200

Fig 3: Identifying Puller (123 589 08 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Thrust Piece (140 589 00 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Thrust Piece (216 589 00 34 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Puller (230 589 00 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying Puller (221 589 02 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 8: Identifying Press Out/In Tool (220 589 06 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 9: Identifying Set Of Thrust Pieces (221 589 01 34 00)

Courtesy of MERCEDES-BENZ USA
