Insertion/extraction of the rubber bushing on the track control arm - AR33.15-P-0170-02SX

Press out

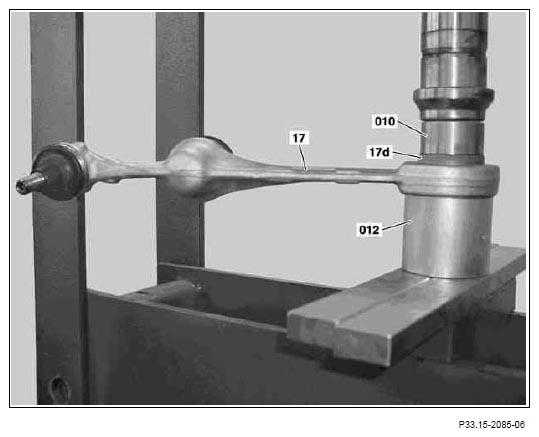

1. Press out rubber mount (17d) using thrust pieces (010, 012).

   The press out/in tool 220 589 06 43 00 contains:

   • thrust piece (012), part number 220 589 06 43 02.

The thrust piece set 221 589 01 34 00 contains:

• thrust piece (010), part number 221 589 01 43 01.

Pressing in

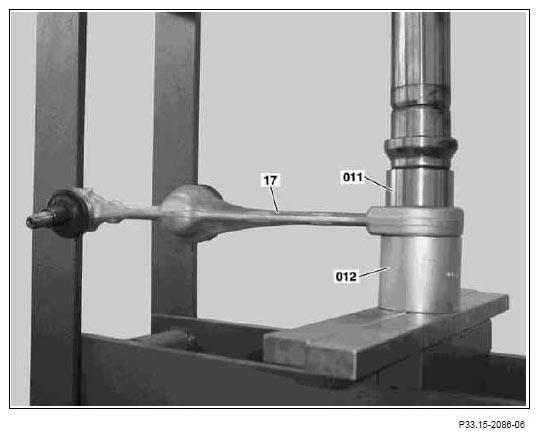

1. Press in rubber mount (17d) using thrust pieces (011, 012) far enough until the collar of the thrust piece (011) abuts with the spring control arm (17).

The press out/in tool 220 589 06 43 00 contains:

• thrust piece (012), part number 220 589 06 43 02.

The thrust piece set 221 589 01 34 00 contains:

• thrust piece (011), part number 221 589 01 43 02.
