Remove/install low temperature water circuit radiator - AR09.41-P-6935SZ
ENGINE 275 (except 275.982) in MODEL 216, 221
| Remove/install | |||

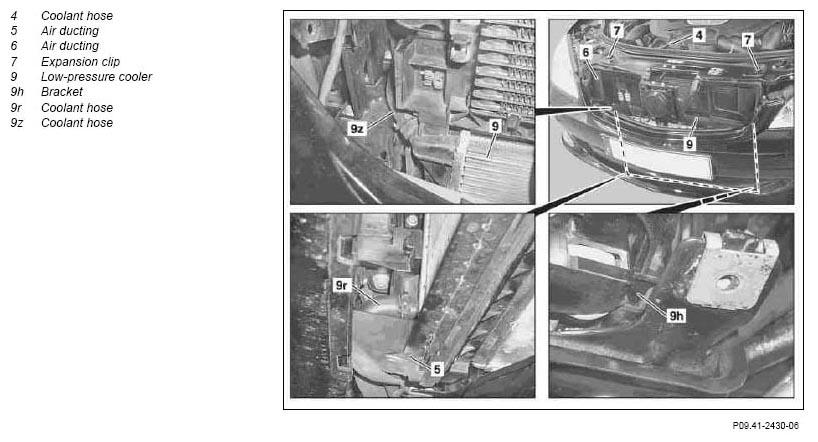

| 1 | Remove right engine intake air duct upstream of left air filter | ||
| 2 | Remove expansion clip (7) from engine radiator | ||
| 3 | Remove radiator grille from bumper | Model 216 |
|
| 4 | Remove right air ducting (6) | ||
| 5 | Remove front section of lower engine compartment paneling | Vehicles without top protection | AR61.20-P-1105SX |
| Vehicles with code Z07 Top protection | AR61.20-P-1105SXS | ||
| 6 | Remove front section of fender liner in right front fender | ||
| 7 | Loosen oil cooler and secure with cable tie | Model 221.176, 216.376 | AR18.30-P-1000SZ |
| 8 | Remove lower air ducting (5) | ||
| 9 | Drain coolant from low temperature circuit | AR20.00-P-1142HM | |
| 10 | Remove coolant hoses (9r, 9z) on low-temperature cooler (9) with hose clamp pliers with Bowden cable | ||
| 11 | Press bracket (9h) upwards and unclip low temperature cooler (9) from engine radiator | ||
| 12 | Unhook low temperature cooler (9) from engine radiator and raise low temperature cooler (9) somewhat | ||
| 13 | Take low temperature cooler (9) down and out | ||
| 14 | Install in the reverse order | ||
| 15 | Bleed low temperature circuit | AR20.00-P-1145H | |
| 16 | Inspect cooling system for leaks | AR20.00-P-1010HN |
