Inspect cooling system for leaks - AR20.00-P-1010HN
ENGINE 275 in MODEL 215, 216, 220, 221, 230 Low-temperature circuit
ENGINE 285 in MODEL 240 Low temperature circuit

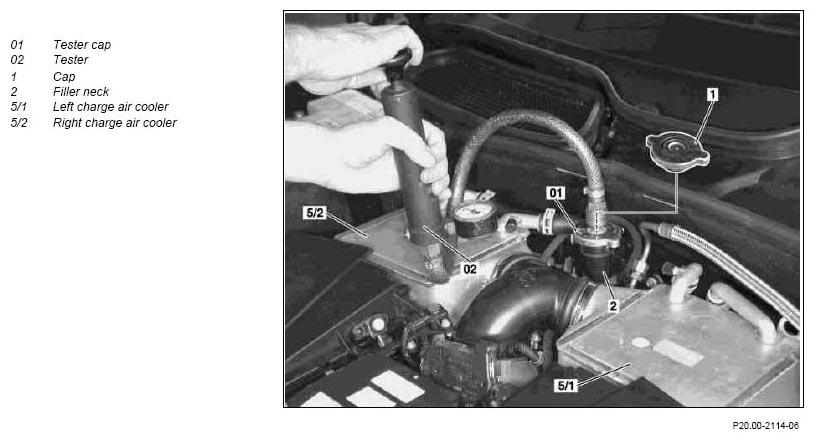

Shown on engine 285
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Remove engine cover. | Engine 275.95, 285 | AR01.10-P-2405LA |
| Engine 275.98 | AR01.10-P-2405IM | ||
| 2 | Remove cap (1) of filler neck (2) | If coolant has flowed out, the low temperature circuit must be bled: ↓ |
|
| Bleed low temperature circuit | AR20.00-P-1145H | ||
| Checking | |||
| 3 | Check engine coolant level and antifreeze content of coolant in the low temperature circuit, correct if required | *BF20.00-P-1001-04A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| Notes on coolant level | AH20.00-P-1142-01V | ||
Drain/fill in coolant |
|||
| Model 215, 216, 220, 221, 230 | AR20.00-P-1142HM | ||
| Model 240 | AR20.00-P-1142HN | ||
| 4 | Mount test cap (01) on filler neck (2) | Fig 3 | |
| 5 | Connect testing unit (02) at test cap (01) | Fig 2 | |
| 6 | Apply pressure to low temperature circuit | ||
| 7 | Check condition and coolant loss of coolant lines and hoses as well as connecting points; replace coolant lines and hoses if required | ||
| 8 | Check condition and seating of the clamps; remove clamp with hose clamp pliers if necessary and replace | ||
| 9 | Remove bottom engine compartment paneling | Model 215, 220 | AR61.20-P-1105M |
| Model 216, model 221 without code (Z07) Top protection | AR61.20-P-1105SX | ||
| Model 221 with code (Z07) Top protection | AR61.20-P-1105SXS | ||
| Model 230 without code (P99) "AMG Black Series" | AR61.20-P-1105R | ||
| Model 230 with code (P99) Special model "AMG Black Series" | AR61.20-P-1105RBS | ||
| Model 240 | AR61.20-P-1105H | ||
| 10 | Check condition and coolant loss of low temperature circuit radiator, coolant lines and hoses as well as connecting points; replace low temperature circuit radiator, as well as coolant lines and hoses if required | ||
| 11 | Check condition and seating of the clamps; remove clamp with hose clamp pliers if necessary and replace | If no water loss can be determined from outside: ↓ | |
| Remove engine induction air ducts from left and right-side charge air coolers. | AR09.41-P-8623H | ||
| Check left and right charge air cooler at air inlet using a flexible endoscope, cylinder illumination unit and inspection mirror for inner leaktightness. In the event of leaks: ↓ |
AR09.41-P-6800-01H | ||
| Replace left and/or right-side charge air cooler. If no water loss is determined at the side of the air inlet: ↓ |
AR09.41-P-6817HH | ||
| Leaving coolant lines connected, remove left and right-side charge air coolers from engine. | AR09.41-P-6817HH | ||
| Check left and right charge air cooler at air outlet using a flexible endoscope, cylinder illumination unit and inspection mirror for inner leaktightness. In the event of leaks: ↓ |
AR09.41-P-6800-01HH | ||
| Replace left and/or right-side charge air cooler. | AR09.41-P-6817HH | ||
| 12 | Install in the reverse order | ||
| 13 | Pour in coolant | After installation of new parts | |
| 14 | Bleed low temperature circuit | After installation of new parts | AR20.00-P-1145H |
MIXTURE RATIO FOR COOLANT
| Number | Designation | ENGINE all | ||
|---|---|---|---|---|
| BF20.00-P-1001-04A | Mixture ratio for coolant | Antifreeze/water | Up to -37°C | 50/50 |
| up to -45°C | 55/45 | |||
| Specifications for service products | Sheet | BB00.40-P-0310-01A | ||
| Sheet | BB00.40-P-0325-00A | |||
