Remove/install engine oil cooler - AR18.30-P-1000SZ
ENGINES 275.953 in MODEL 216.376, 221.176
| Remove/install | |||
| 1 | Remove lower engine compartment paneling | Vehicles without code (Z07) Top protection | AR61.20-P-1105SX |
| Vehicles with code (Z07) Top protection | AR61.20-P-1105SXS | ||
| 2 | Remove front section of fender liner in right front fender | ||

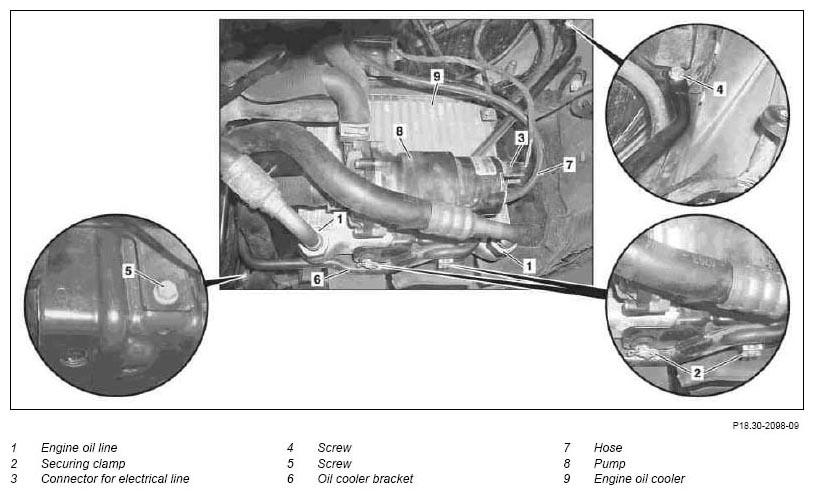

| 3 | Unplug connector (3) | ||
| 4 | Detach hose (7) | ||
| 5 | Detach engine oil line (1) from engine oil cooler (9) | ||
| *BA18.30-P-1003-01B | |||
| 6 | Detach safety clamp (2) from engine oil cooler (9) | ||
| 7 | Remove bolts (4, 5) and remove engine oil cooler (9) with air ducting (10) from bracket (11) | *BA18.30-P-1008-01B | |
| *BA18.30-P-1015-01B | |||

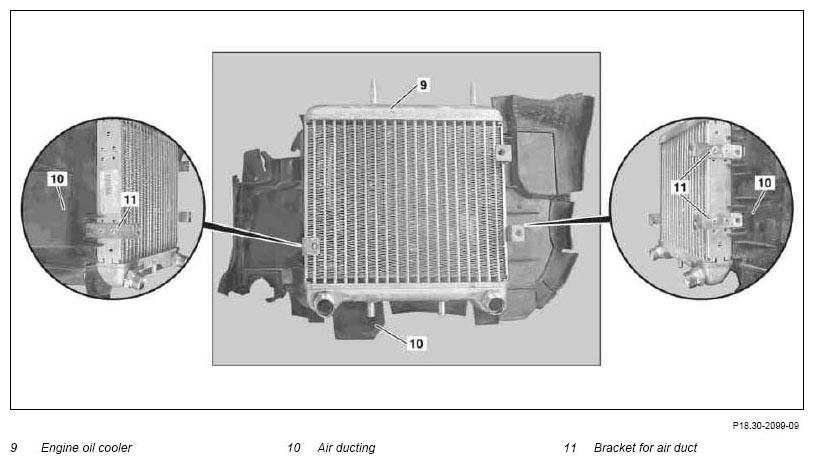

| 8 | Unclip air ducting (10) from bracket (11) | When replacing the engine oil cooler (9) | |
| Checking | |||
| 9 | Check rubber mount at bracket (11) and front end | Check rubber mount for wear and correct fitting, replace if necessary. | |
| Lubricant paste | *BR00.45-Z-1002-06A | ||
| 10 | Install in the reverse order | ||
| 11 | Check engine oil level about 5 minutes after switching off the warm engine, if necessary adjust to correct level | ||
| Engine oil and filter change | AP18.00-P-0101SZ | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 12 | Check for leaks with engine running |
OIL COOLING SYSTEM
| Number | Designation | Engine 275.950/951/953/954, 285 | |
|---|---|---|---|
| BA18.30-P-1003-01B | Union nut of oil line to oil cooler | Nm | 30 |
| BA18.30-P-1008-01B | Bolt connecting retaining bracket of engine cooler to front end assembly | Nm | 8 |
| BA18.30-P-1015-01B | Bolt connecting retaining bracket of engine radiator to radiator support | Nm | 8 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1002-06A | Lubricating paste, rubber parts 2.5 kg, DB supply specification 6867.00 | A 000 989 01 60 |
