Remove/install floor covering in rear - AR68.20-P-4800RT

MODEL 251 Front section

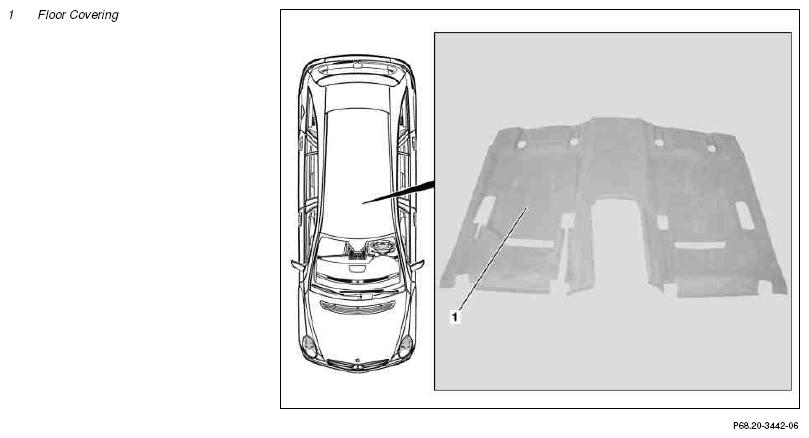

Fig 1: Identifying Rear Floor Covering Remove/Install Component (1 Of 2)

Courtesy of MERCEDES-BENZ USA

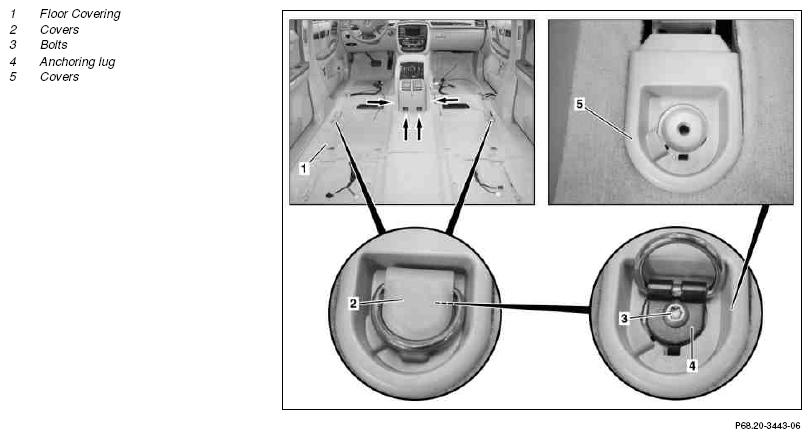

Fig 2: Identifying Rear Floor Covering Remove/Install Component (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove front seat	On left and right.	AR91.10-P-1000RT
2	Remove rear seat	2nd seat row, left and right	AR91.12-P-1000RT
3	Remove center rear individual seat	Only on vehicles with center rear individual seat, code 225.	AR91.12-P-1000RTB
4	Remove B-pillar paneling	On left and right.	AR68.30-P-4700RT
5	Remove door sill molding	On left and right.	AR68.30-P-4100RT
6	Unclip covers (2).	Long wedge	Figure
7	Remove bolts (3)		*BA68.50-P-1001-03G
8	Remove anchoring lug (4).	Ensure that guide lugs are installed correctly.
9	Remove covers (5).
10	Remove floor covering (1)	Ensure that floor covering (1) is seated correctly below center console (arrows).
11	Install in the reverse order

CARGO RETAINERS

Number	Designation		Model 251
BA68.50-P-1001-03G	Bolt, cargo retainers to body	Nm	24

Fig 3: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
