Remove/install rear seat - AR91.12-P-1000RTB

MODEL 251 with CODE (225) Center rear individual seat

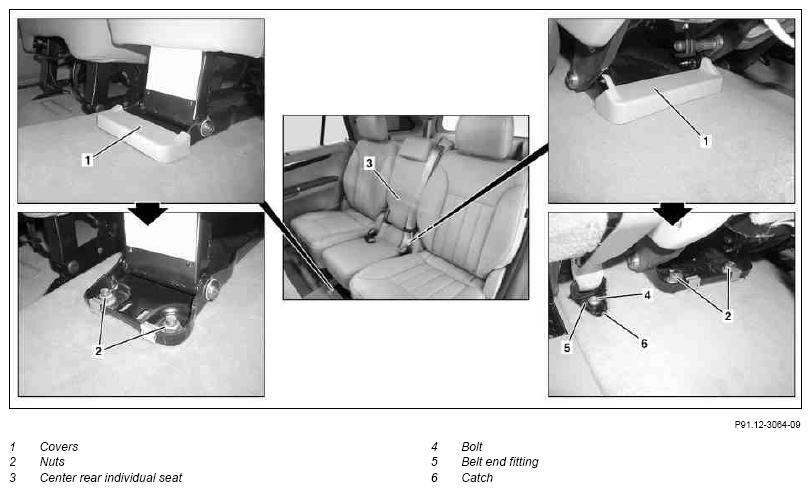

Fig 1: Identifying Rear Seat Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Unclip covers (1) upwards	Mounting wedge	Figure
2	Unscrew nuts (2)	To remove rear nuts, move center rear individual seat (3) forwards. Install new nuts.
2	Unscrew nuts (2)		*BA91.12-P-1007-03G
3	Unscrew bolt (4) from belt end fitting (5)	Ensure that the catch (6) is correctly seated. Please ensure that the seat belt is not twisted.
3	Unscrew bolt (4) from belt end fitting (5)		*BA91.40-P-1010-01N
4	Remove center rear individual seat (3) through rear door	With aid of helper.
5	Install in the reverse order

REAR SEATS

Number	Designation		Model 251
BA91.12-P-1007-03G	Nut, center rear individual seat console to body	Nm	70

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 251
BA91.40-P-1010-01N	Bolt, center rear individual seat belt end fitting to body	Nm	30
