Remove/install paneling on B-pillar - AR68.30-P-4700RT

MODEL 251

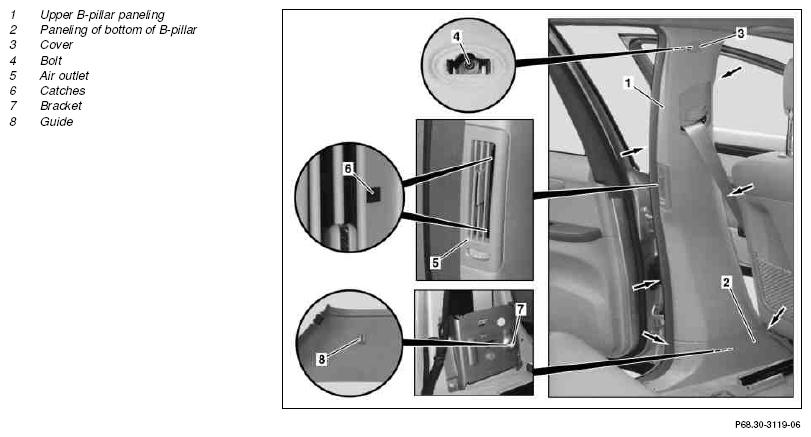

Fig 1: Identifying B-Pillar Paneling Remove/Install Component (1 Of 3)

Courtesy of MERCEDES-BENZ USA

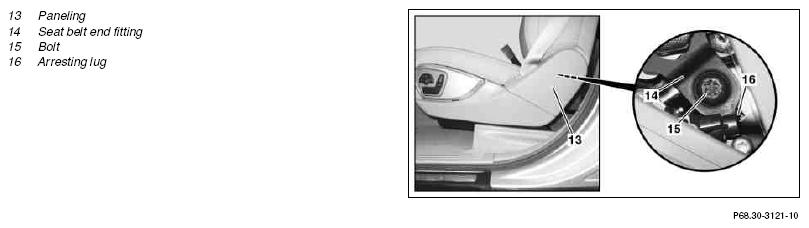

Fig 2: Identifying B-Pillar Paneling Remove/Install Component (2 Of 3)

Courtesy of MERCEDES-BENZ USA

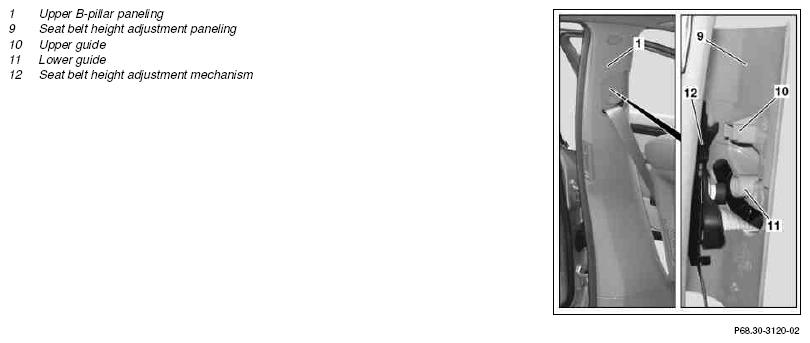

Fig 3: Identifying B-Pillar Paneling Remove/Install Component (3 Of 3)

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Move front seat forward	See Operator's Manual
2	Remove door sill molding	Left or right side.	AR68.30-P-4100RT
3	Remove edge guard in area of B-pillar on rear door	Ensure that edge guard is seated correctly.
4	Remove air outlet (5) with suitable tool	Removal:  The air outlet is fastened with 4 catches (6). Pull catches (6) toward inside with suitable tool and remove air outlet
5	Unclip cover (3)
6	Unscrew bolt (4)
7	Remove paneling (13) from front seat
8	Unscrew bolt (15) from belt end fitting (14) and remove belt end fitting (14)	Ensure that seat belt does not twist and that the arresting lug (16) is seated correctly in the guide.
			*BA91.40-P-1001-01N
9	Remove edge guard in area of B-pillar from front door	Ensure that edge guard is seated correctly.
10	Unclip upper B-pillar paneling (1)	Install seat belt through belt height adjustment paneling (9) Removal:  Position mounting wedge directly to clips (arrows) Ensure that upper guide (10), lower guide (11) and belt height adjustment paneling (9) are seated correctly on belt height adjustment (12).
		Mounting wedge	Figure
11	Unclip lower B-pillar paneling (2)	Position mounting wedge directly to clips (arrows) Slide guide (8) on lower B-pillar paneling (2) into mount (7).
		Mounting wedge	Figure
12	Install in the reverse order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 251
BA91.40-P-1001-01N	Screw at belt end fitting	Nm	35

Fig 4: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
