Remove/install Keyless Go antenna - AR82.62-P-8000RT

MODEL 251

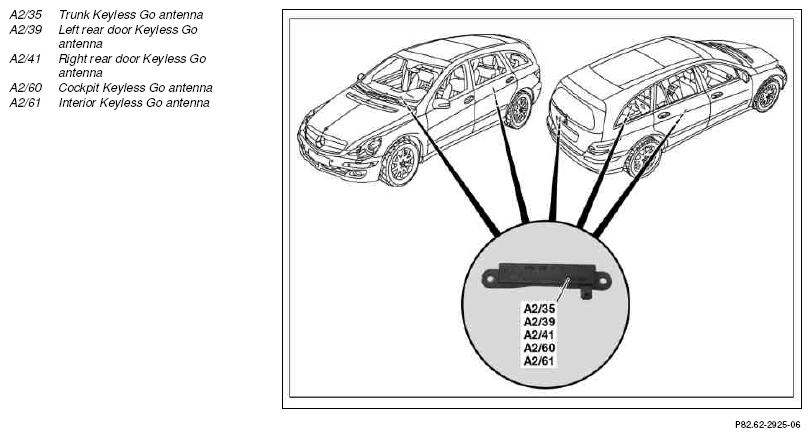

Fig 1: Identifying Keyless Go Antenna Remove/Install Components

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Keyless Go Cockpit Antenna Remove/Install Components

Courtesy of MERCEDES-BENZ USA

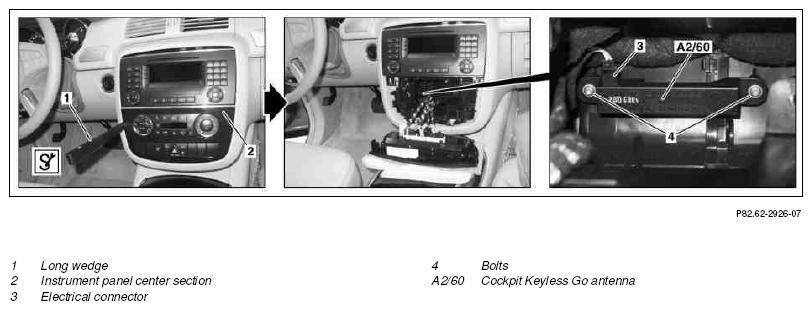

Keyless go cockpit antenna (A2/60)

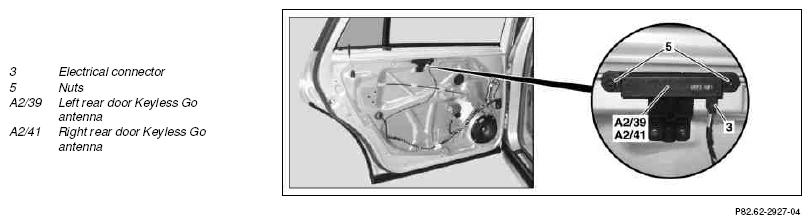

Left rear door Keyless Go antenna (A2/39) and right rear door Keyless Go antenna (A2/41)

Fig 3: Identifying Rear Door Keyless Go Antenna Remove/Install Components

Courtesy of MERCEDES-BENZ USA

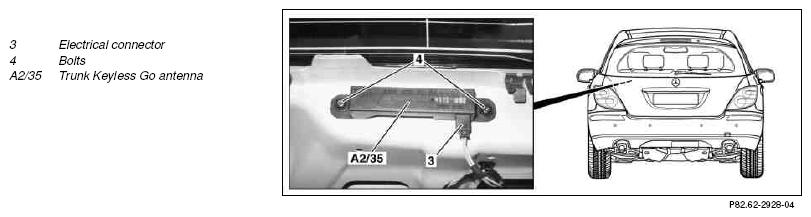

Keyless go trunk antenna (A2/35)

Fig 4: Identifying Left/Right Rear Axle Speed Sensor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

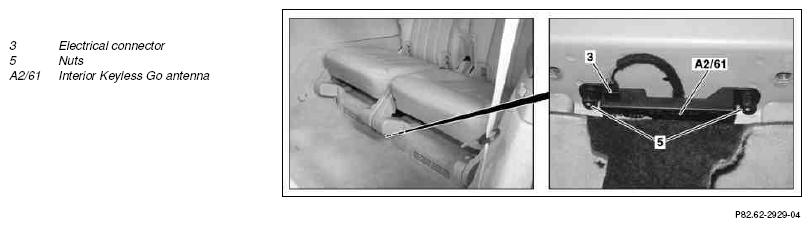

Interior Keyless Go antenna (A2/61)

Fig 5: Identifying Interior Keyless Go Antenna Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off ignition and remove the transmitter key from the EIS [EZS] control unit	On vehicles with Keyless Go, code 889: Press Keyless Go start/stop button repeatedly until ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m).
2.1	Unclip instrument panel center section (2) with long wedge (1), remove and lay down on center console	Only when removing Keyless go cockpit antenna (A2/60). Protect trim parts of the instrument panel and center console from scratches. First insert instrument panel center section (2) with both bottom lugs, then fold upward and clip in.
		Long wedge	Figure
2.2	Remove door lining from rear door	Only when removing left rear door Keyless Go antenna (A2/39) or right rear Keyless Go antenna (A2/41).	AR72.12-P-1010RT
2.3	Remove lining on rear-end door	Only when removing Keyless Go trunk antenna (A2/35).	AR72.20-P-3520RT
2.4	Remove 3rd seat row rear seats	Only when removing interior Keyless Go antenna (A2/61).	AR91.12-P-1000RTA
3	Separate electrical connection (3)
4.1	Remove screws (4).	Only when removing Keyless go cockpit antenna (A2/60) and Keyless Go trunk antenna (A2/35).
4.2	Unscrew nuts (5).	Only when removing left rear door Keyless Go antenna (A2/39), right rear Keyless Go antenna (A2/41) and Interior Keyless Go antenna (A2/61).
5	Remove Keyless Go cockpit antenna (A2/60), left rear door Keyless Go antenna (A2/39), right rear door Keyless Go antenna (A2/41), Keyless Go trunk antenna (A2/35) or Interior Keyless Go antenna (A2/61)
6	Install in the reverse order
7	Read out fault memory	Stored faults which may be caused by disconnecting cables or by simulation during test operations, must be erased in the fault memory after completing the work.
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS system	*WH58.30-Z-1048-13A
