Remove/install rear-end door lining - AR72.20-P-3520RT

MODEL 251

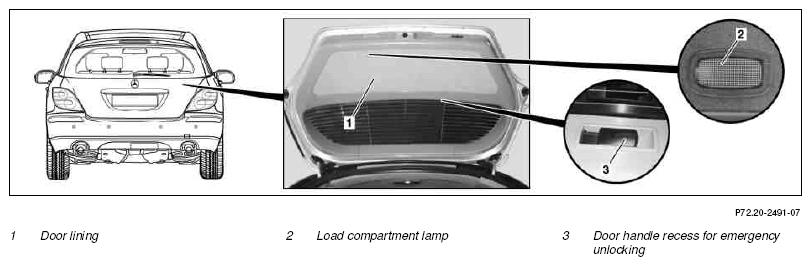

Fig 1: Identifying Rear-End Door Lining Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

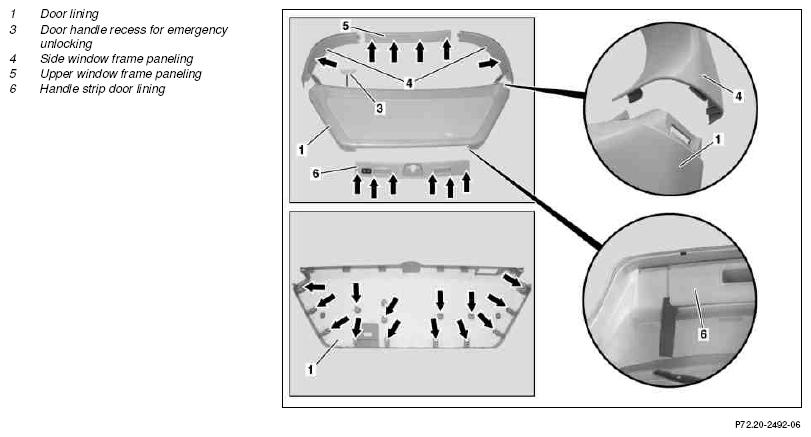

Fig 2: Identifying Rear-End Door Lining Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/Install
	Risk of injury  caused by fingers being jammed or pinched  when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	When moving components, ensure that no body parts or limbs are within the operating range of moving parts.	AS00.00-Z-0011-01A
Removal	Danger of breaking and tearing  plastic paneling parts and associated clip retainer
1	Unclip upper window frame paneling (5) and remove	Move mounting wedge directly to mounting clips (arrows).
		Mounting wedge	Figure
2	Unclip side window frame paneling (4) and remove	Move mounting wedge directly to mounting clips (arrows).
		Mounting wedge	Figure
3	Unclip door handle recess for emergency unlocking (3) from door lining (1)
4	Unclip load compartment lamp (2) and disconnect electrical connector
5	Unclip handle strip door lining (6) and remove	Move mounting wedge directly to mounting clips (arrows). Pivot retaining lugs into door lining (1) and clip in handle strip door lining (6).
		Mounting wedge	Figure
6	Unclip door lining (1) from paneling	Start unclipping at right and left Move mounting wedge directly to mounting clips (arrows).
		Mounting wedge	Figure
7	Remove door lining (1) from center paneling	Replace mounting clips (arrows)
8	Install in the reverse order
