Remove/install rear seat - AR91.12-P-1000RTA

MODEL 251 3rd seat row

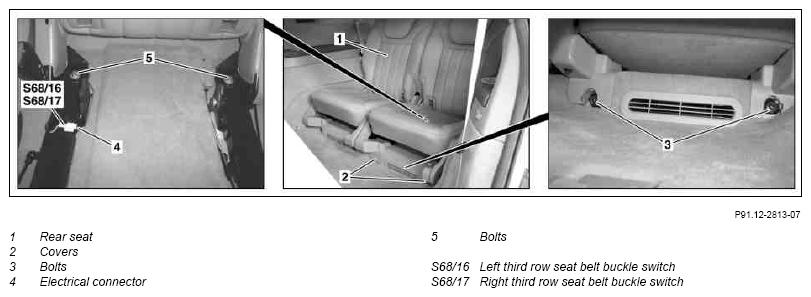

Fig 1: Identifying Rear Seat Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off ignition and remove the transmitter key from the EIS [EZS] control unit	On vehicles with Keyless Go, code 889: Press Keyless Go start/stop button repeatedly until ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m).
2	Unclip covers (2).	Long wedge	Figure
3	Remove bolts (3)	Do not swap screws (3) with screws (5).
			*BA91.12-P-1002-03G
4	Fold seat cushion upwards	See Operator's Manual
5	Disconnect electrical connector (4) from left third row seat belt buckle switch (S68/16) or from right third row seat belt buckle switch (S68/17)
6	Remove bolts (5)		*BA91.12-P-1002-03G
7	Remove rear seat (1) backwards through the rear-end door	With aid of helper.
8	Install in the reverse order

REAR SEATS

Number	Designation		Model 251
BA91.12-P-1002-03G	Screw of seat console in 3rd seat row to body	Nm	50

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
