Remove/install rear door lining - AR72.12-P-1010RT

MODEL 251

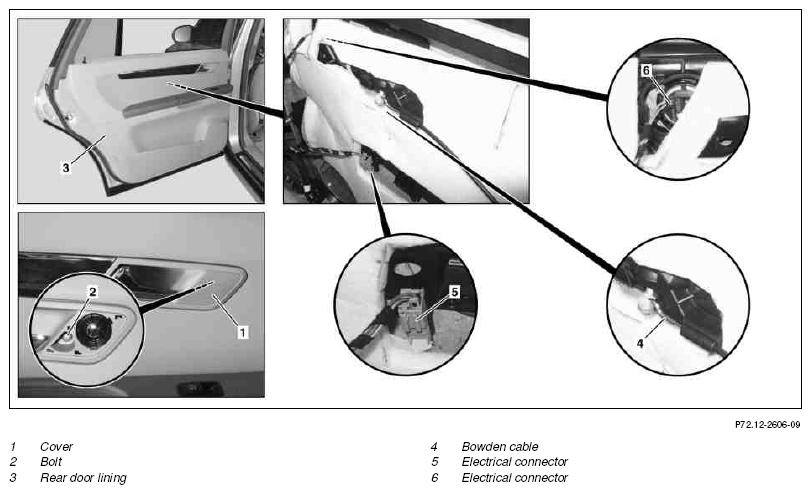

Fig 1: Identifying Rear Door Lining Remove/Install Components (1 Of 3)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Rear Door Lining Remove/Install Components (2 Of 3)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Rear Door Lining Remove/Install Components (3 Of 3)

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Open front door
2	Completely move down window
3	Switch off ignition and remove transmitter key from EIS [EZS] control unit	On vehicles with Keyless Go, code 889: Press keyless go start/stop button repeatedly until ignition is switched off Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m).
4	Unclip cover (1)	Long wedge	Figure
5	Unscrew bolt (2).

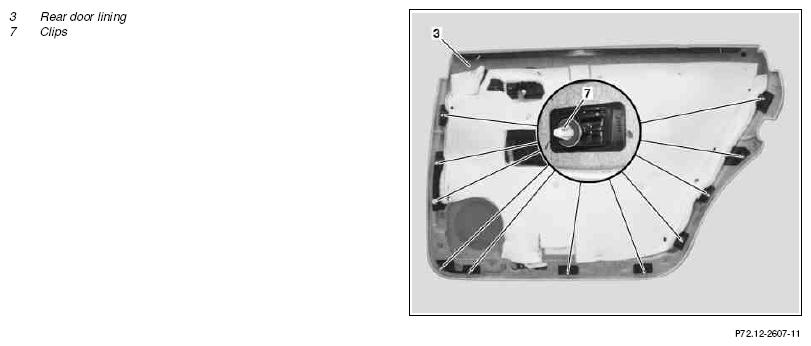

6	Pry off rear door lining (3)	Removal:  First position mounting wedge at bottom and then at side on door lining (7). Check clips (7), replace if necessary
		Mounting wedge	Figure

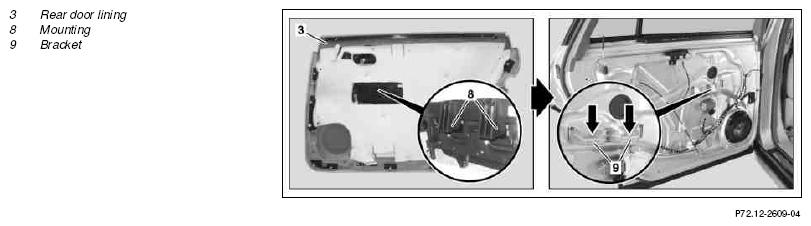

7	Remove rear door lining (3) upward from door	Slide mount (8) onto bracket (9) from top
8	Remove Bowden cable (4) from inner door opener
9	Disconnect electrical connector (5)	Treat ribbon cables carefully to prevent damage
10	Disconnect electrical connector (6) from tweeter
11	Remove rear door lining (3)
12	Install in the reverse order

Fig 4: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
