Remove/install low temperature radiator - AR09.41-P-6831TZ
ENGINES 113.990 in MODEL 219.376
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the pillars of the lifting platform and position the four support plates at the lifting platform mounting points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Raise vehicle with vehicle lift | AR00.60-P-1000TX | |
| 2 | Detach lower engine compartment paneling | AR61.20-P-1105TX | |
| 3 | Drain coolant at radiator | AR20.00-P-1142TY | |
| Notes on coolant | All engines | AH20.00-N-2080-01A | |
| *BF20.00-P-1001-02K | |||

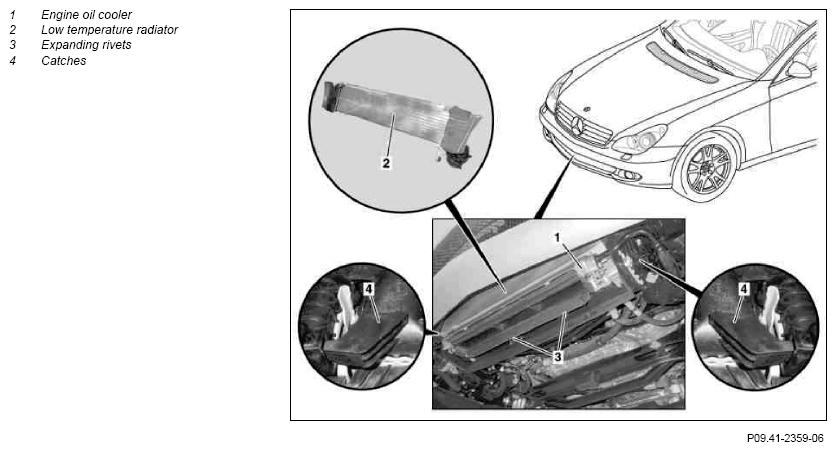

| 4 | Remove engine oil cooler (1) | AR18.30-P-1000TY | |
| *BA18.30-P-1012-01B | |||
| 5 | Remove coolant lines on the right on low temperature radiator (2) | Special pliers |
|
| 6 | Remove expansion rivets (3) | ||
| 7 | Push in lower latches (4) and pull low temperature radiator (2) to the front | ||
| 8 | Lift low temperature radiator (2) out of the upper guide on the radiator | ||
| 9 | Remove low temperature radiator (2) | ||
| 10 | Install in the reverse order | ||
| 11 | Inspecting cooling system for leaks | AR20.00-P-1010TX |
OIL COOLING SYSTEM
| Number | Designation | Engine 113 | |
|---|---|---|---|
| BA18.30-P-1012-01B | Nut connecting bracket to low temperature radiator | Nm | 6 |
COOLING SYSTEM
| Number | Designation | Engine 113.990 | ||
|---|---|---|---|---|
| BF20.00-P-1001-02K | Cooling system | Total filling capacity | Liters | ≈13.2 |
| Capacity of anticorrosion/antifreeze agent down to -37°C | Liters | ≈6.6 | ||
| Filling capacity of anticorrosion/antifreeze down to -45°C | Liters | ≈7.3 | ||
| Specifications for Operating Fluids | - | Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1 | ||
| - | Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 | |||
