Remove/install intake manifold - AR09.20-P-1310TY

ENGINES 113.967 in MODEL 219.375

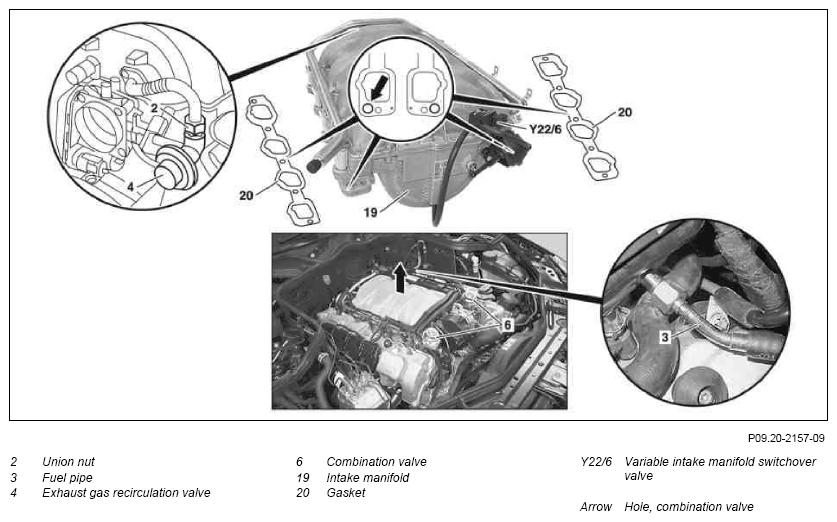

Fig 1: Identifying Intake Manifold Remove/Install Components
G10767451Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of explosion  caused by fuel igniting, risk of poisoning  caused by inhaling and swallowing fuel and risk of injury to eyes and skin caused by contact with fuel No fire, sparks, open flames or smoking.
Only pour fuels into suitable and appropriately marked containers.
Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A
1 Switch ignition off, remove ignition key (transmitter key) IMPORTANT On vehicles with code 889 Keyless Go: Press keyless go start/stop button repeatedly until the ignition is switched off.
Remove the Keyless Go transmitter card or transmitter key from the vehicle and store beyond the reach of the transmitter (min. 2 m).

2 Open engine hood   AR88.40-P-1000TX
3 Unclip cover on engine firewall side See: ↓
Remove air filter housing. AR09.10-P-1150TY
4 Remove hot film mass air flow sensor with air intake pipe   AR07.07-P-1454TY
5 Removing fuel rail with injection valves   AR07.03-P-1451TY
6 Remove vacuum lines from intake manifold (19) and variable intake manifold switchover valve (Y22/6) INSTALLATION IMPORTANT Observe intake manifold connection diagram. AR09.20-P-1310-01TY
7 Disconnect the electrical plug connection at the switch suction pipe (Y22/6) of the switchover valve
8 Unscrew union nut (2) for line to exhaust gas recirculation valve (4) IMPORTANT Counterhold connection fitting when unscrewing.
TORQUE SPECIFICATION *BA14.20-P-1002-01B
9 Remove combination valves (6)
10 Remove bolts (19) of charge air manifold from cylinder head TORQUE SPECIFICATION *BA09.20-P-1001-01D
11 Remove intake manifold (19) upwards IMPORTANT Plug intake ducts.
IMPORTANT The intake manifold must not be disassembled.
INSTALLATION IMPORTANT Replace seals (20). During assembly observe correct seating of the bores for the combination valves (see arrow).
INSTALLATION IMPORTANT Use centering bolt for exact positioning of intake manifold and for centering the gaskets (20).

SPECIAL TOOL Fig 2
12 Install in the reverse order
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes.
Do not touch hot or rotating parts.
AS00.00-Z-0005-01A
13 Carry out an engine test run and check intake manifold (19) for leaks NOTES In the event of a leak, determine and eliminate cause, otherwise malfunctions and serious environmental pollution may occur.
CRANKCASE VENTILATION, CYLINDER HEAD COVER

Number Designation Engine 113
BA01.20-P-1001-01E Cylinder head cover bolt Stage 1 Nm 9
Stage 2 ∠° -
INTAKE MANIFOLD

Number Designation Engines 112, 113
BA09.20-P-1001-01D Bolt, intake manifold to cylinder head M8 Nm 20
EXHAUST GAS RECIRCULATION

Number Designation Engine 113.940/941/942/943/944/948/960/9 61/962/964/965/96 6/967/968/969/971/980/981/982/984/987/988
BA14.20-P-1002-01B Union nut, exhaust gas recirculation pipe to exhaust gas recirculation valve Nm 40
Fig 2: Identifying Set Of Dowel Bolts (112 589 02 62 00)
G10767452Courtesy of MERCEDES-BENZ USA
