Remove/install air cleaner housing - AR09.10-P-1150TY

ENGINE 113.967 in MODEL 219.375

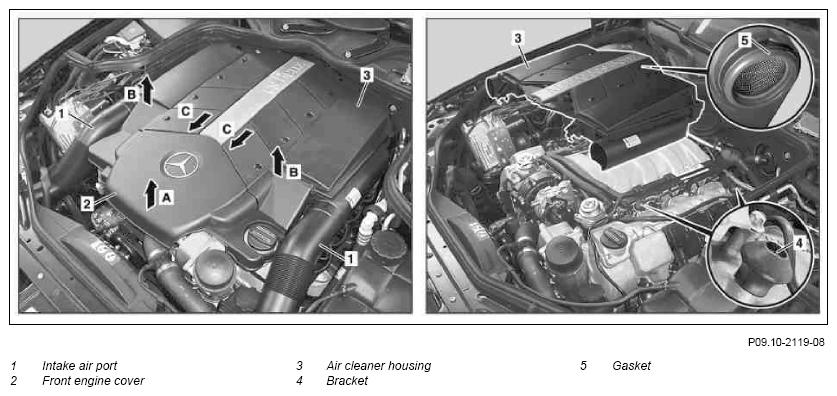

Fig 1: Identifying Air Cleaner Housing Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Turn key in ignition switch to position "0".
2	Open engine hood and raise to vertical position		AR88.40-P-1000TX
3	Remove left and right suction fan duct (1)
4	Disengage the front engine cover (2) at the front in the upward direction (arrow A)
5	Disengage the front engine cover (2) at the left rear and right rear carefully in the upward direction (arrows B)
6	Pull out the front engine cover (2) towards the front from the air cleaner housing (3) (arrows C)	In order to avoid scratches and damage, the front engine cover (2) must be put down onto a padded base.
7	Detach the air cleaner housing (3) upwards from the mounts (4) at the left and right cylinder head cover	In order to avoid scratches and damage, the air cleaner housing (3) must be put down on a padded base.
	Check
8	Check gasket (5)	Check for damage and correct position; if necessary, replace the seal (5) or mount it correctly.
9	Apply liquid lubricant to the mounts (4) and to the seal (5)	Lubricant	*BR00.45-Z-1002-06A
10	Install in the reverse order

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1002-06A	Lubricating paste, rubber parts 2.5 kg, DB supply specification 6867.00	A 000 989 01 60
