Motor electronics (ME-SFI) fuel injection and ignition system, function - GF07.61-P-0001VA

ENGINE 273.961 in MODEL 216.371, 221.071 /171 up to Model Year 8

The ME 9.7 fuel injection and ignition system is an advance development of the ME 2.8.

The abbreviated designation ME-SFI 9.7 means:

M = M  otronic (motor electronics)

E  = E  lectronic accelerator pedal

9.7  = Version 9.7

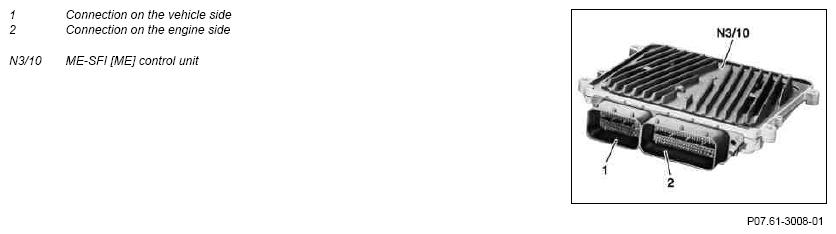

In engine control unit, the ME-SFI [ME] control unit (N3/10), the following function are consolidated:

• Ignition system
• Injection system
• Electronic accelerator
• Idle speed control
• Torque interface
• Diagnosis and fault storage
• Gateway between the drive CAN and the chassis CAN
• Immobilizer and drive authorization
• Evaporative emission control system (for with leak test)
• Fuel supply
• Starter control
• Fan control
• Secondary air injection
• Emission control

The ME-SFI [ME] control unit evaluates the following basic information:

• Air mass
• Coolant temperature
• Engine speed/crankshaft position
• Smooth operation of the engine (misfire detection)
• Throttle valve position
• Accelerator pedal position
• O₂ sensor signals
• Intake manifold pressure
• Intake air temperature
• Outside air temperature
• Air pressure (altitude)
• Inlet and exhaust camshaft position
• Vehicle speed (via CAN)
• Steering angle (via CAN)
• Alternator interface
• Knocking of engine
• Brake recognition (via CAN)
• Oil level

The ME-SFI [ME] control unit receives and transmits data via the following data buses:

• Interior CAN
• Drive train CAN
• Diagnostic CAN
• Chassis CAN
• Central CAN
• LIN (Local interconnect Network) for alternator interface.

The central gateway control unit (N93) controls the data traffic (gateway) between interior CAN, diagnostic CAN, chassis CAN and central CAN.

The engine control unit is the gateway between the drive CAN and the chassis CAN.

The ME-SFI [ME] control unit is flashable. The software required to program the control units is provided on the DAS Update DVD.

	Motor electronics (ME-SFI) fuel injection and ignition system, location of components	Engine side	GF07.61-P-0001-01VA
		Vehicle side	GF07.61-P-0001-01VG
	Motor electronics (ME-SFI) gasoline injection and ignition system function diagram		GF07.61-P-0001-02VA
	Motor electronics (ME-SFI) fuel injection and ignition system control unit, input signals		GF07.61-P-0001-06V
	Motor electronics (ME-SFI) fuel injection and ignition system control unit, output signals		GF07.61-P-0001-07V
	ME-SFI fuel injection and ignition system, model and major assembly overview		GF07.61-P-0001-12V
	ME-SFI ignition ON, function		GF07.61-P-3005V
	ME-SFI starting, function		GF07.61-P-2003V
	ME-SFI idle, function		GF07.61-P-2006V
	ME-SFI driving mode, function		GF07.61-P-2005V
	CAN data bus, function		GF54.00-P-0005VA
	On-board refueling vapor recovery function	At	GF47.10-P-3004V
	ME-SFI vehicle features	At	AH07.61-P-0002-02VU
	Motor electronics (ME-SFI) fuel injection and ignition system - survey of system components, location/task/design/function		GF07.61-P-9999V
