(ME-SFI) motor electronics fuel injection and ignition system, location of components - GF07.61-P-0001-01VG

shown on model 221

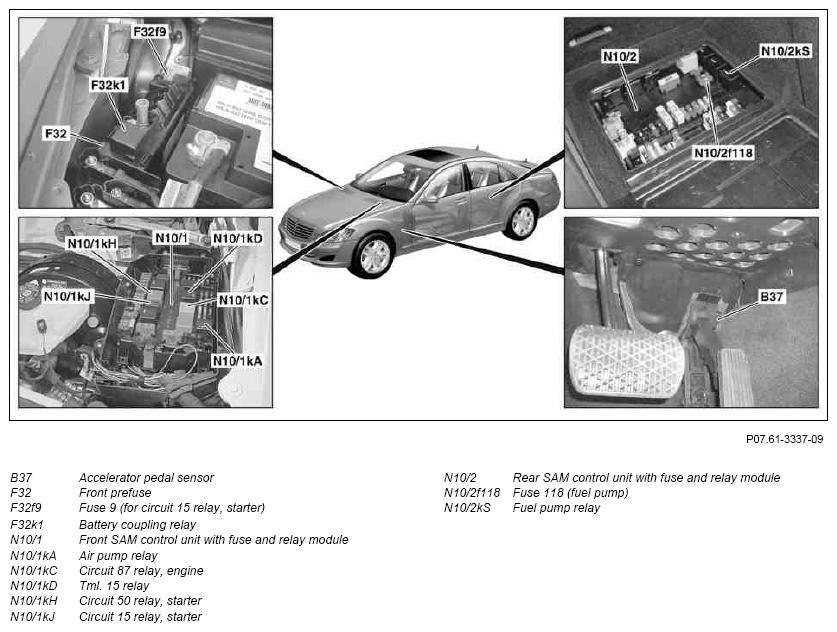

Fig 1: Identifying Fuel Injection And Ignition System Components Location (1 Of 6)

Courtesy of MERCEDES-BENZ USA

shown on model 221

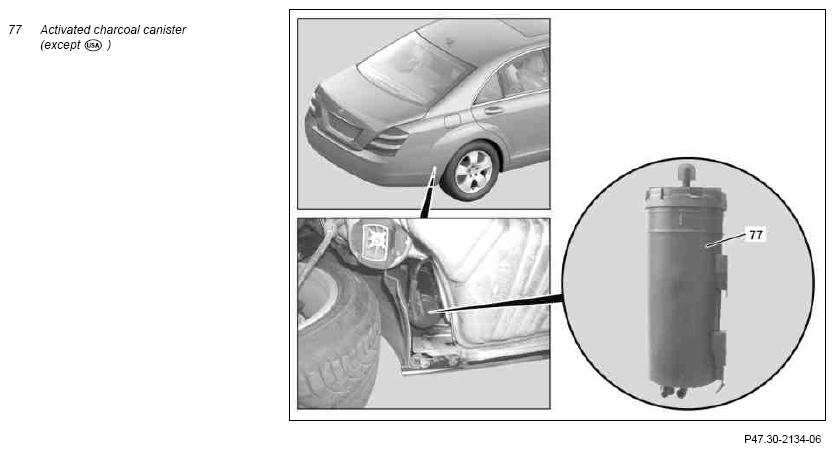

Fig 2: Identifying Fuel Injection And Ignition System Components Location (2 Of 6)

Courtesy of MERCEDES-BENZ USA

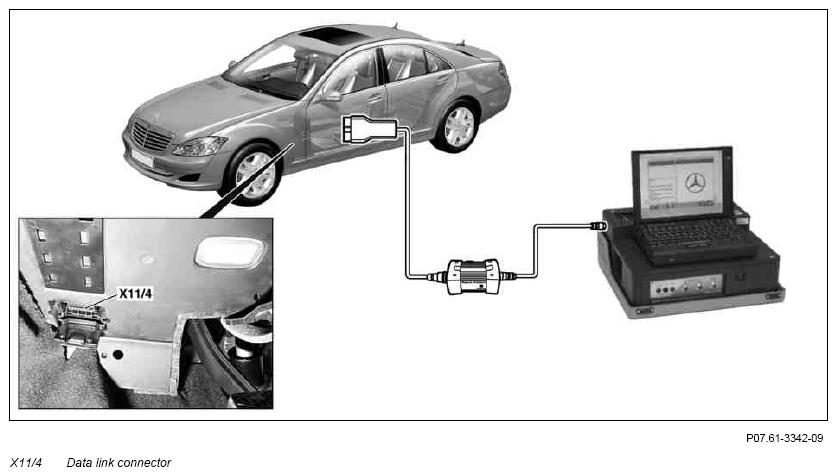

Fig 3: Identifying Fuel Injection And Ignition System Components Location (3 Of 6)

Courtesy of MERCEDES-BENZ USA

Shown on model 221

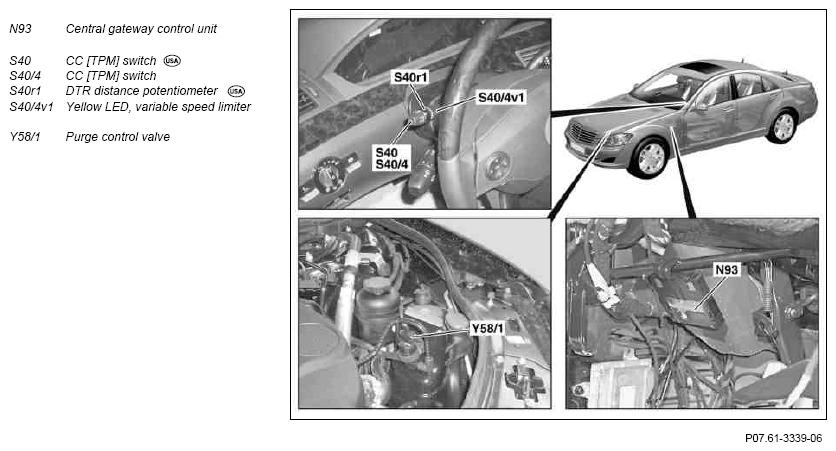

Fig 4: Identifying Fuel Injection And Ignition System Components Location (4 Of 6)

Courtesy of MERCEDES-BENZ USA

Shown on model 221

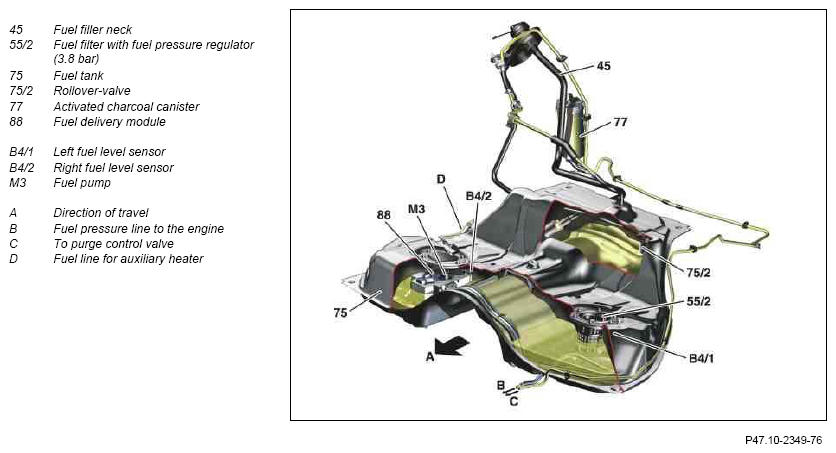

Fig 5: Identifying Fuel Injection And Ignition System Components Location (5 Of 6)

Courtesy of MERCEDES-BENZ USA

Shown on model 221

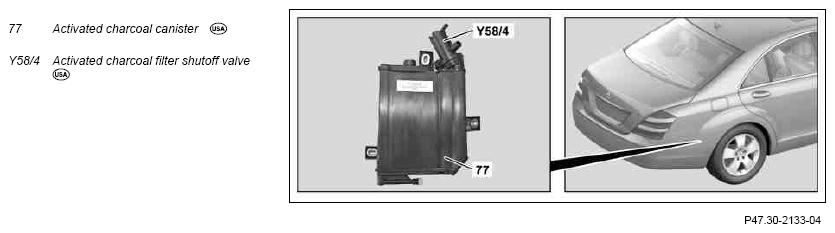

Fig 6: Identifying Fuel Injection And Ignition System Components Location (6 Of 6)

Courtesy of MERCEDES-BENZ USA

Shown on engine 273

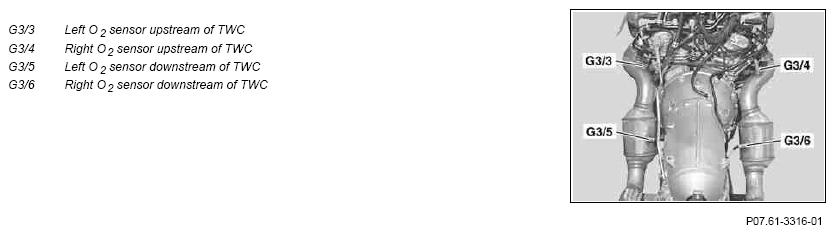

Fig 7: Identifying Left/Right O2 Sensor Upstream And Downstream Of TWC (Shown On Engine 273)

Courtesy of MERCEDES-BENZ USA

The O₂ sensors downstream of TWC jut into the catalytic convertor in the area between the first and second monolithic filters

Shown on engine 273

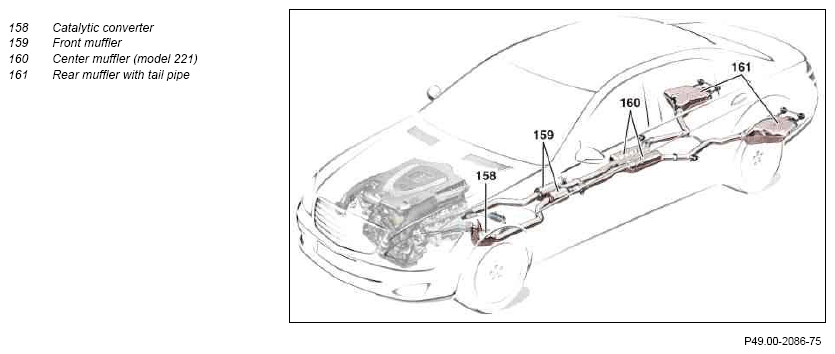

Fig 8: Identifying Catalytic Converter, Front, Center And Rear Muffler With Tail Pipe (Shown On Engine 273)

Courtesy of MERCEDES-BENZ USA
