Motor electronics (ME) fuel injection and ignition system control unit, input signals - GF07.61-P-0001-06V

Shown on engine 272 in model 171

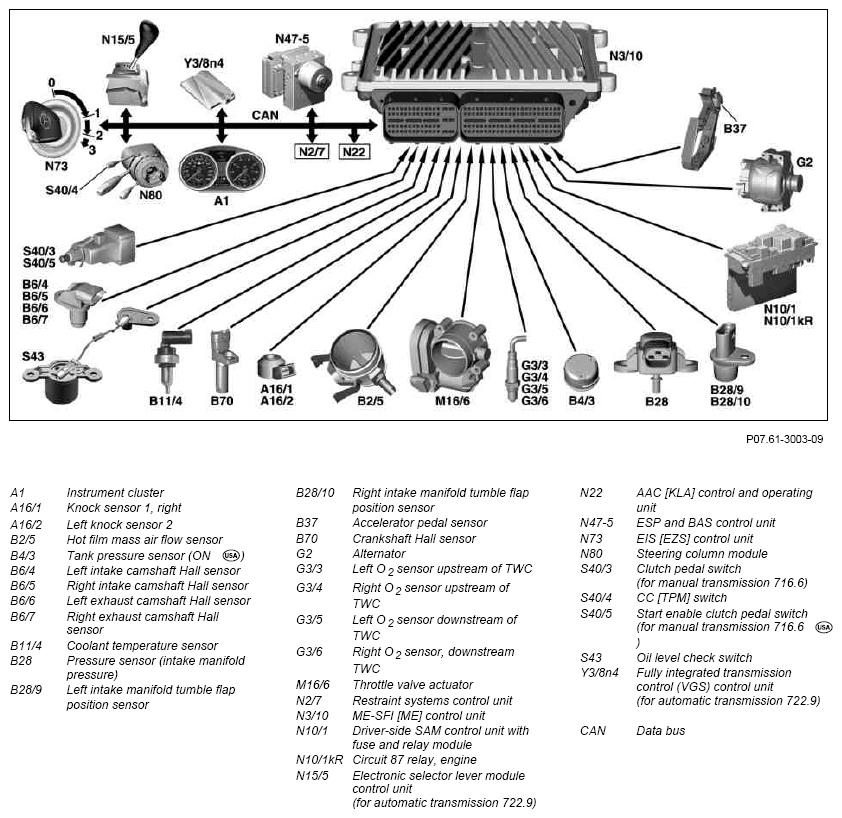

Fig 1: Identifying Fuel Injection And Ignition System Control Unit Input Signals Diagram
G07633985Courtesy of MERCEDES-BENZ USA
