Mobile phone system, function - GF82.70-P-0007G
MODEL 463.247 /248 /254 /270 /303 /340 /341 up to 31.8.08 with CODE (EH1) Mobile phone with cradle and hands-free system with CODE (EV8) Mobile phone preinstallation as of model year 2007 model year 07.5, YoM 07
MODEL 463.249 /271 up to 31.8.08 as of model year 2007

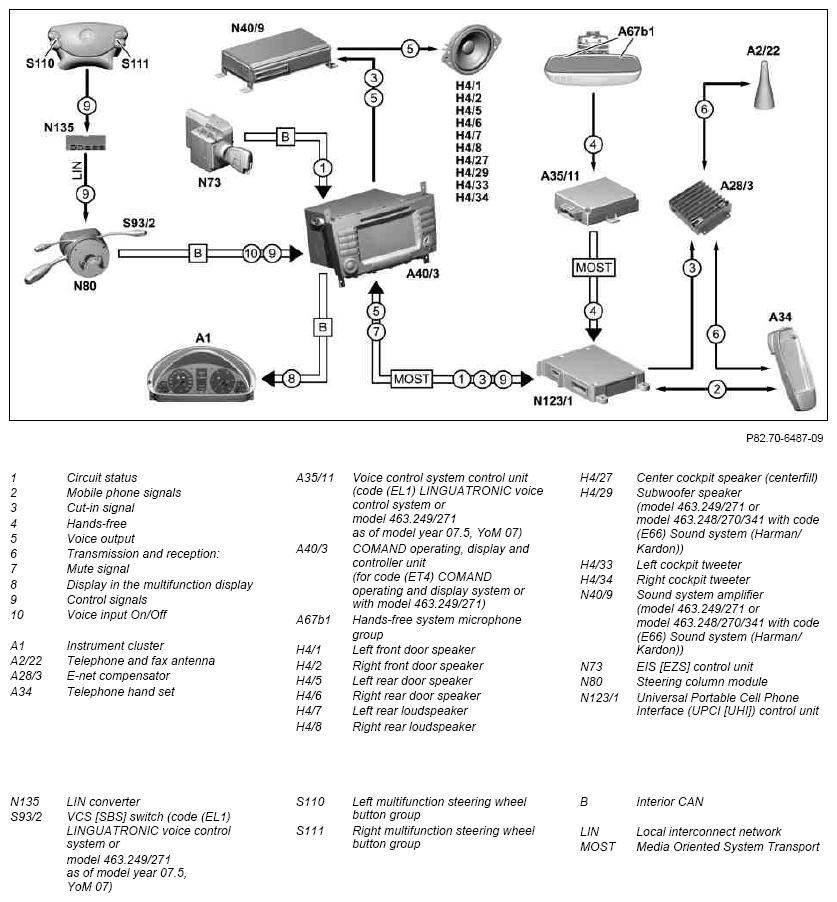

Shown on model 463.249
Depending on equipment installed in the vehicle one of the following control units is installed:
- Radio (A2) (not with model 463.249/271 or without code (ET4) COMAND operating and display system)
- COMAND operating, display and controller unit (for code (ET4) COMAND operating and display system or with model 463.249/271)
The term audio control unit is used for this in the function description.
Function requirements
- C. 15R On
- A mobile telephone network is available in adequate strength and quality
- Compatible mobile phone plugged into the telephone handset
- Enabled Subscriber Identification Module (SIM) card inserted in mobile phone
- Mobile phone system operating error-free
General
The mobile phone system function consists of the following partial functions:
- Switch on/off characteristics
- Establish call and terminate call
- Accepting a call
- Short Message Service (SMS)
- Voice control system (for code (EL1) LINGUATRONIC voice control system or with model 463.249/271)
Operating instruction
The mobile phone system is operated via:
- Buttons on the mobile phone
- Telephone buttons on the audio control unit
- Multifunction steering wheel button groups
- Voice control system (VCS [SBS]) (model 463.247/248/254/270/303/340/341 with code (EL1) LINGUATRONIC voice control system or model 463.249/271 as of model year 07.5, YoM 07)
With model 463.249/271 it is only possible to operate audio, telephone and navigation components via the multifunction steering wheel button groups and via VCS [SBS] as of model year 07.5, YoM 07.
Display
The mobile phone functions are displayed via:
- Audio control unit display
- Multifunction display (A1p13) of instrument cluster
- Mobile phone display
With model 463.249/271 it is only possible to display audio, telephone and navigation data in the multifunction display in the instrument cluster as of model year 07.5, YoM 07.
Address book supplemental information
The user can manage all the contact data in the address book (view, edit, add, delete and create). The address book contains the address entries saved in the audio control unit.
Address entries can contain the following:
- Names (surname and first name)
- Postal addresses (private or business)
- Phone numbers
- Geometric position (private or business)
- Company name
| Mobile phone system, location of components | Model 463.247/248/254/270/303/340/341 | GF82.70-P-0007-01G | |
| Model 463.249/271 | GF82.70-P-0007-01GA | ||
| Mobile phone system, block diagram | GF82.70-P-0007-02G | ||
| Telephone switch-on/switch-off characteristics, function | GF82.70-P-2007G | ||
| Setting up/ending phone call, function | GF82.70-P-2008G | ||
| Phone call acceptance, function | GF82.70-P-2009G | ||
| Short Message Service (SMS), function | GF82.70-P-2014G | ||
| Voice control, function | Model 463.247/248/254/270/303/340/341 with code (EL1) LINGUATRONIC voice control system or Model 463.249/271 as of model year 07.5, YoM 07 |
GF82.70-P-3020G |
