Mobile phone system, block diagram - GF82.70-P-0007-02G

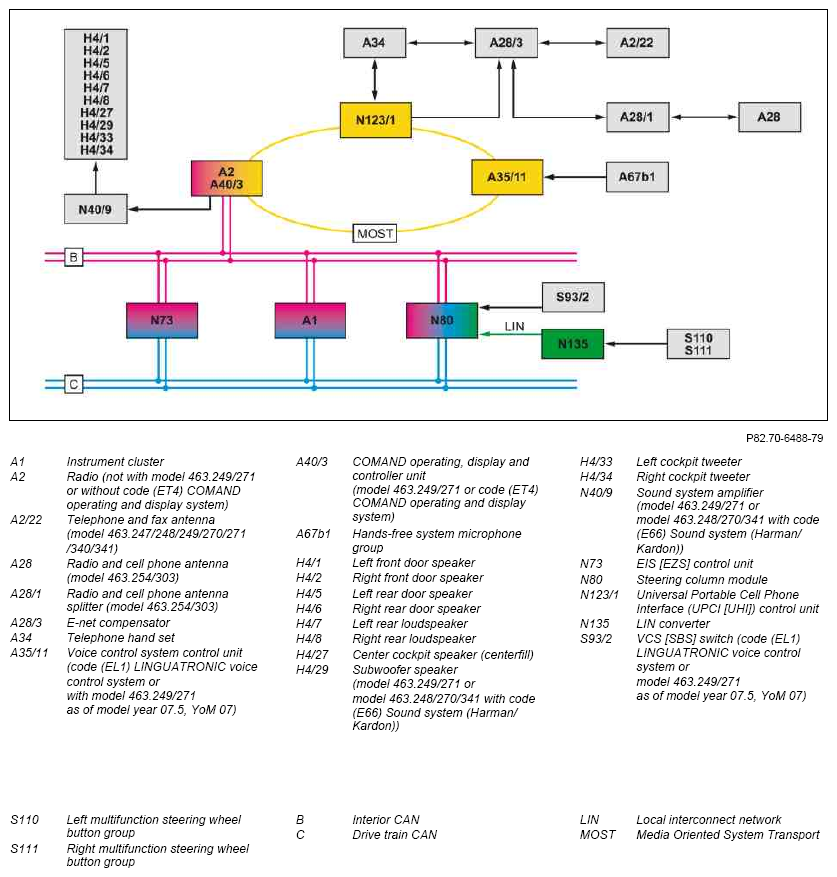

Fig 1: Mobile Phone System Block Diagram

G07705797

Courtesy of MERCEDES-BENZ USA
