Remove/install radial sealing ring of rear axle shaft at rear axle housing - AR35.31-P-0541PF

TRANSMISSION 722 in MODEL 203.018 /065 /218 /265 /718 rear axle center assembly dia. 210 Rear axle center assembly 210E

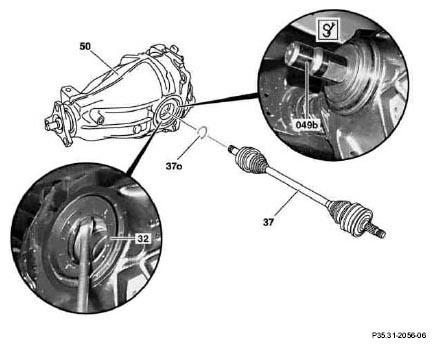

Fig 1: Identifying Radial Sealing Ring Of Rear Axle Shaft At Rear Axle Housing Remove/Install Components - Dia. 210

20.3.04	Oil filler screw and oil drain screw changed on rear axle center assembly	Phased in as of 19.01.04 The oil filler screw and oil drain screw must always be replaced with new screws after removal. Clean new oil filler and drain screws as well as the tapped holes with a special cleaning spray and apply special sealing compound.	BT35.31-P-0015-01A
	The oil drain screw must always be replaced after being unscrewed from the rear axle center assembly. The new oil drain screw as well as the tapped hole must be cleaned with a special cleaning spray and a special sealing compound must be applied to the oil drain screw.		AR35.31-P-0520-06I
	Always replace oil filler screw after unscrewing rear axle center assembly.	Only carry out the oil level check at room temperature.	AR35.31-P-0520-03I
		The new oil filler screw as well as the tapped hole must be cleaned with a special cleaning spray and a special sealing compound must be applied to the oil filler screw.

	Remove
	Risk of death  cased by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Raise vehicle.		AR00.60-P-1000P
2	Drain oil from rear axle center assembly (50).		AR35.31-P-0520-06I
		Cleaning spray, Loctite 7063 (150ml)	*BR00.45-Z-1046-04A
		Sealant, Omnifit 100H (50 g)	*BR00.45-Z-1061-01A
		Oil drain screw	*BA35.31-P-1002-02B
	Oil filler screw and oil drain screw changed on rear axle center assembly	Phased in as of 19.01.04	BT35.31-P-0015-01A
3	Remove rear axle shafts (37).		AR35.30-P-0620PF
4	Remove radial sealing ring (32).	Press radial sealing ring (32) out of rear axle center assembly (50) using a suitable tool.	AR35.31-P-0540-05FF
		Drift	Figure
		Drift	Figure
	Install
5	Install radial sealing ring (32).	Before installing new radial sealing ring (32), check seat surface of radial sealing ring (32) for damage to ensure proper sealing and seating. Coat lip of new radial sealing ring (32) with universal hypoid gear oil.	AR35.31-P-0540-05FF
		Drift	Figure
		Drift	Figure
		Universal hypoid transmission fluid	BB00.40-P-0235-07A
6	Install rear axle shafts (37).		AR35.30-P-0620PF
7	Check oil level in rear axle center assembly (50) and correct if necessary.	Mixing of old universal hypoid gear oil and the new FE hypoid gear oil should be avoided due to the better fuel economy.	AR35.31-P-0520-03I
		Filling capacity of rear axle center assembly	*BF35.31-P-1001-01K
		Cleaning spray, Loctite 7063 (150ml)	*BR00.45-Z-1046-04A
		Sealant, Omnifit 100H (50 g)	*BR00.45-Z-1061-01A
		Oil filler screw, rear axle center assembly	*BA35.31-P-1001-02B
	Oil filler screw and oil drain screw changed on rear axle center assembly	Phased in as of 19.01.04	BT35.31-P-0015-01A

REAR AXLE CENTER ASSEMBLY HOUSING

REAR AXLE CENTER ASSEMBLY

Fig 2: Identifying Drift (211 589 00 15 00)

Fig 3: Identifying Drift (126 589 00 15 00)
