Check rear axle differential oil level, correct if necessary Oil filler/drain screw on rear axle differential modified - AR35.31-P-0520-03I

up to 18.1.04

MODIFICATION NOTES

10.8.06 Filling capacity, Specifications for Operating Fluids Model 209.377/477 *BF35.31-P-1001-01K
TORQUE SPECIFICATION REAR AXLE CENTER ASSEMBLY HOUSING

Number Designation Model 211
BA35.31-P-1002-02A Oil filler screw, rear axle differential Nm 50
TORQUE SPECIFICATION REAR AXLE CENTER ASSEMBLY HOUSING

Number Designation Model 215
BA35.31-P-1002-02A Oil filler screw, rear axle differential Nm 50
TORQUE SPECIFICATION REAR AXLE CENTER ASSEMBLY HOUSING

Number Designation Model 220 Model 230
BA35.31-P-1002-02A Oil filler screw, rear axle differential Nm 50 50
TORQUE SPECIFICATION REAR AXLE DIFFERENTIAL HOUSING

Number Designation Model 203.020/040/052/054/056/220/240/243/252/254/256/730/743/756
BA35.31-P-1001-02B Oil filler screw, rear axle differential Nm 50
TORQUE SPECIFICATION REAR AXLE DIFFERENTIAL HOUSING

Number Designation Model 203.042/043/046/081/084/087/092/242/246/281/284/287/292/740/742/746, Model 203.004/061/204/261 as of 09/2002
BA35.31-P-1001-02B Oil filler screw, rear axle differential Nm 50
TORQUE SPECIFICATION REAR AXLE DIFFERENTIAL HOUSING

Number Designation Model 203.035/045/235/245/735/745/747, 203.061/261 up to 08/2002, Model 203.004/006/204/ 206/706 up to 08/2002
BA35.31-P-1001-02B Oil filler screw, rear axle differential Nm 50
TORQUE SPECIFICATION REAR AXLE DIFFERENTIAL HOUSING

Number Designation Model 203.006/007/008/064/206/207/208/264/706/707/708/764, Model 203.004/204 with code 450 up to 08/2002 Model 203.007/207/with code 450
BA35.31-P-1001-02B Oil filler screw, rear axle differential Nm 50
TORQUE SPECIFICATION REAR AXLE DIFFERENTIAL HOUSING

Number Designation Model 203.016/216
BA35.31-P-1001-02B Oil filler screw, rear axle differential Nm 50
TORQUE SPECIFICATION REAR AXLE DIFFERENTIAL HOUSING

Number Designation Model 203.018/065/218/265/718
BA35.31-P-1001-02B Oil filler screw, rear axle differential Nm 50
TORQUE SPECIFICATION REAR AXLE DIFFERENTIAL HOUSING

Number Designation Model 203.076/276 Model 209.375/376/475/476 as of 24.4.04 Model 209.372/377/472/477
BA35.31-P-1001-02B Oil filler screw, rear axle differential Nm 50
TORQUE SPECIFICATION REAR AXLE DIFFERENTIAL HOUSING

Number Designation Model 209.341/342/343/361/441/442/461
BA35.31-P-1001-02B Oil filler screw, rear axle differential Nm 50
TORQUE SPECIFICATION REAR AXLE DIFFERENTIAL HOUSING

Number Designation Model 209.308/320/354/356/420/454/456
BA35.31-P-1001-02B Oil filler screw, rear axle differential Nm 50
TORQUE SPECIFICATION REAR AXLE DIFFERENTIAL HOUSING

Number Designation Model 209.316, Model 209.375/376/475/476 up to 23.4.04 Model 209.365/465
BA35.31-P-1001-02B Oil filler screw, rear axle differential Nm 50 50
TORQUE SPECIFICATION REAR AXLE CENTER ASSEMBLY HOUSING

Number Designation Model 240
BA35.31-P-1002-02A Oil filler screw, rear axle differential Nm 50
FLUID SPECIFICATION REAR AXLE DIFFERENTIAL

Number Designation Model 215.373/375/378 Model 220.063/065/067/083/084/087/163/165/167/183/184/187 Model 220.025/026/028/070/073/075/125/126/128/170/173/178 Model 220.175 without special protection version code 979
BF35.31-P-1001-01J Filling capacity Rear axle center assembly Liters 1.6 1.2 1.6
Specifications for Operating Fluids Sheet BB00.40-P-0235-07A BB00.40-P-0235-07A BB00.40-P-0235-07A
FLUID SPECIFICATION REAR AXLE DIFFERENTIAL

Number Designation Model 203.006/008/054/056/064/206/208/254/256/264/706/708/756/764, Model 203.004/204 with taxi version code 450, up to 08/2002, Model 203.007/207 with taxi version code 450 Model 203.040/042/043/046/052/081/084/087/092/240/242/243/246/252/281/284/287/292/707/730/740/742/743/746, Model 203.004/061/204/261, as of 09/2002, Model 203.007/207 without taxi version
BF35.31-P-1001-01K Filling capacity Rear axle center assembly Liters 1.1 1.0
Specifications for Operating Fluids Sheet BB00.40-P-0235-07A BB00.40-P-0235-07A
FLUID SPECIFICATION REAR AXLE DIFFERENTIAL

Number Designation Model 203.016/216 Model 203.018/065/218/265/718
BF35.31-P-1001-01K Filling capacity Rear axle center assembly Liters 1.6 1.6
Specifications for Operating Fluids Sheet BB00.40-P-0235-07A BB00.40-P-0235-07A
FLUID SPECIFICATION REAR AXLE DIFFERENTIAL

Number Designation Model 203.035/045/235/245/735/745/747, Model 203.061/261 up to 08/2002, Model 203.004/204 except code 450 up to 08/2002 Model 203.020/076/220/276
BF35.31-P-1001-01K Filling capacity Rear axle center assembly Liters 1.1 1.2
Specifications for Operating Fluids Sheet BB00.40-P-0235-07A BB00.40-P-0235-07A
FLUID SPECIFICATION REAR AXLE DIFFERENTIAL

Number Designation Model 209.308/354/356/365/454/456/465 Model 209.316, Model 209.375/376/475/476 up to 23.4.04 Model 209.341/342/343/361/441/442/461
BF35.31-P-1001-01K Filling capacity Rear axle center assembly Liters 1.1 1.6 1.0
Specifications for Operating Fluids Sheet BB00.40-P-0235-07A BB00.40-P-0235-07A BB00.40-P-0235-07A
FLUID SPECIFICATION REAR AXLE DIFFERENTIAL

Number Designation Model 209.320/420, Model 209.375/376/475/476 as of 24.4.04 Model 209.372/472 Model 209.377/477
BF35.31-P-1001-01K Filling capacity Rear axle center assembly Liters 1.2 1.2
Specifications for Operating Fluids Sheet BB00.40-P-0235-07A BB00.40-P-0235-61A
FLUID SPECIFICATION REAR AXLE DIFFERENTIAL

Number Designation Model 211 except 211.077/277 Model 230 except 230.472/474/479
BF35.31-P-1001-01L Filling capacity 210 mm dia. rear axle differential in rear axle differential 210E Liters 1.6 1.6
Specifications for Operating Fluids Sheet BB00.40-P-0235-07A BB00.40-P-0235-07A
BF35.31-P-1002-01L Filling capacity Rear axle differential dia. 198 mm Liters 1.1 1.1
Specifications for Operating Fluids Sheet BB00.40-P-0235-07A BB00.40-P-0235-07A
BF35.31-P-1003-01L Filling capacity Rear axle center assembly dia. 187 mm Liters 1.0 -
Specifications for Operating Fluids Sheet BB00.40-P-0235-07A -
BF35.31-P-1004-01L Filling capacity Rear differential assembly dia. 215 mm Liters 1.2 1.2
Specifications for Operating Fluids Sheet BB00.40-P-0235-07A BB00.40-P-0235-07A
BF35.31-P-1006-01L Filling capacity 200 mm dia. rear axle differential in rear axle differential 200FE Liters 1.1 1.1
Specifications for Operating Fluids Sheet BB00.40-P-0235-07A BB00.40-P-0235-07A
FLUID SPECIFICATION REAR AXLE DIFFERENTIAL

Number Designation Model 211.077/277, model 230.472/474/479
BF35.31-P-1001-01L Filling capacity 210 mm dia. rear axle differential in rear axle differential 210E Liters -
Specifications for Operating Fluids Sheet -
BF35.31-P-1002-01L Filling capacity Rear axle differential dia. 198 mm Liters -
Specifications for Operating Fluids Sheet -
BF35.31-P-1003-01L Filling capacity Rear axle center assembly dia. 187 mm Liters -
Specifications for Operating Fluids Sheet -
BF35.31-P-1004-01L Filling capacity Rear differential assembly dia. 215 mm Liters 1.2
Specifications for Operating Fluids Sheet BB00.40-P-0235-61A
BF35.31-P-1006-01L Filling capacity 200 mm dia. rear axle differential in rear axle differential 200FE Liters -
Specifications for Operating Fluids Sheet -
FLUID SPECIFICATION REAR AXLE DIFFERENTIAL

Number Designation Model 215.374/376/379, Model 220.074/174/176/179/875/876, Model 240 Model 220.175 with special protection version code 979
BF35.31-P-1001-01M Filling capacity Rear axle differential ø 240 mm in rear axle differential 240V Liters 1.9 1.9
Rear axle differential ø 240 mm in rear axle differential 240FE Liters 1.6 1.6
Specifications for Operating Fluids Sheet BB00.40-P-0235-07A BB00.40-P-0235-07A
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1061-01A Sealant, Omnifit 100H (50 g) -
BR00.45-Z-1046-04A Cleaning spray, Loctite 7063 (150ml) A 001 986 71 71 10
  1. Clean area around oil filler screw (50 g).

    IMPORTANT Only carry out the oil level check at interior temperature and not on a rear axle center assembly which is at operating temperature. Otherwise, when the rear axle differential is at operating temperature, required oil could escape.

  2. Remove oil filler screw (50 g)

    IMPORTANT Replace oil filler screw (50g).

  3. If necessary collect oil running out and allow to run out until oil only drips out of opening.

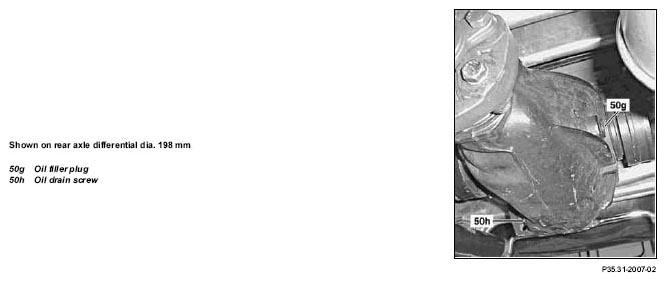

    Fig 1: Identifying Rear Axle Differential Oil Filler Screw And Oil Drain Screw
    G04734723
  4. Check oil level.

    IMPORTANT When the oil level is correct, the oil reaches the lower edge of the oil filler hole, refill if necessary.

    IMPORTANT The fully synthetic oil can also be used without reservations rear axle center assemblies which have been produced before 4.11.2001. Mixing old universal hypoid gear oil and new FE hypoid gear oil does not impair the basic functions such as wear characteristics, leaktightness, etc. at the rear axle differential, but on should, however, be avoided in the interest of better fuel economy.

  5. Clean the new oil filler screw (50 g) and the threaded hole in the rear axle differential with Loctite 7063 cleaning spray and a suitable rag.

    IMPORTANT The oil filler screw (50g) and tapped hole must be free of oil and grease.

  6. Apply about a drop of Omnifit sealing compound 100H on the second or third lower thread of the oil filler screw (50 g).
    Fig 2: Applying Drop Of Omnifit Sealing Compound On The Second Or Third Lower Thread Of The Oil Filler Screw
    G04734724

    the oil filler screw (50 g).

  7. Screw oil filler screw (50 g) immediately into the rear axle differential and tighten with specified torque TORQUE SPECIFICATION .
