Drain oil from rear axle differential Oil filler/drain screw on rear axle differential modified - AR35.31-P-0520-06I

up to 18.1.04

TORQUE SPECIFICATION

REAR AXLE CENTER ASSEMBLY HOUSING

Number	Designation		Model 211
BA35.31-P-1003-02A	Oil drain screw, rear axle differential	Nm	50

TORQUE SPECIFICATION

REAR AXLE CENTER ASSEMBLY HOUSING

Number	Designation		Model 215	Model 220
BA35.31-P-1003-02A	Oil drain screw, rear axle differential	Nm	50	50

TORQUE SPECIFICATION

REAR AXLE CENTER ASSEMBLY HOUSING

Number	Designation		Model 230	Model 240
BA35.31-P-1003-02A	Oil drain screw, rear axle differential	Nm	50	50

TORQUE SPECIFICATION

REAR AXLE DIFFERENTIAL HOUSING

Number	Designation		Model 203.042/043/046/081/084/087/092/242/246/281/284/287/292/740/742/746, Model 203.004/061/204/261 as of 09/2002
BA35.31-P-1002-02B	Oil drain screw, rear axle differential	Nm	50

TORQUE SPECIFICATION

REAR AXLE DIFFERENTIAL HOUSING

Number	Designation		Model 203.020/040/052/054/056/220/240/243/252/254/256/730/743/756
BA35.31-P-1002-02B	Oil drain screw, rear axle differential	Nm	50

TORQUE SPECIFICATION

REAR AXLE DIFFERENTIAL HOUSING

Number	Designation		Model 203.035/045/235/245/735/745/747, 203.061/261 up to 08/2002, Model 203.004/006/204/ 206/706 up to 08/2002
BA35.31-P-1002-02B	Oil drain screw, rear axle differential	Nm	50

TORQUE SPECIFICATION

REAR AXLE DIFFERENTIAL HOUSING

Number	Designation		Model 203.006/007/008/064/206/207/208/264/706/707/708/764, Model 203.004/204 with code 450 up to 08/2002 Model 203.007/207/with code 450
BA35.31-P-1002-02B	Oil drain screw, rear axle differential	Nm	50

TORQUE SPECIFICATION

REAR AXLE DIFFERENTIAL HOUSING

Number	Designation		Model 203.016/216
BA35.31-P-1002-02B	Oil drain screw, rear axle differential	Nm	50

TORQUE SPECIFICATION

REAR AXLE DIFFERENTIAL HOUSING

Number	Designation		Model 203.018/065/218/265/718
BA35.31-P-1002-02B	Oil drain screw, rear axle differential	Nm	50

TORQUE SPECIFICATION

REAR AXLE DIFFERENTIAL HOUSING

Number	Designation		Model 203.076/276 Model 209.375/376/475/476 as of 24.4.04 Model 209.372/377/472/477
BA35.31-P-1002-02B	Oil drain screw, rear axle differential	Nm	50

TORQUE SPECIFICATION

REAR AXLE DIFFERENTIAL HOUSING

Number	Designation		Model 209.341/342/343/361/441/442/461
BA35.31-P-1002-02B	Oil drain screw, rear axle differential	Nm	50

TORQUE SPECIFICATION

REAR AXLE DIFFERENTIAL HOUSING

Number	Designation		Model 209.308/320/354/356/420/454/456
BA35.31-P-1002-02B	Oil drain screw, rear axle differential	Nm	50

TORQUE SPECIFICATION

REAR AXLE DIFFERENTIAL HOUSING

Number	Designation		Model 209.316, Model 209.375/376/475/476 up to 23.4.04
BA35.31-P-1002-02B	Oil drain screw, rear axle differential	Nm	50

TORQUE SPECIFICATION

REAR AXLE DIFFERENTIAL HOUSING

Number	Designation		Model 209.365/465
BA35.31-P-1002-02B	Oil drain screw, rear axle differential	Nm	50

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1061-01A	Sealant, Omnifit 100H (50 g)	-
BR00.45-Z-1046-04A	Cleaning spray, Loctite 7063 (150ml)	A 001 986 71 71 10

Clean area around oil drain screw (50h).
Remove oil drain screw (50h).
Replace oil drain screw (50h).

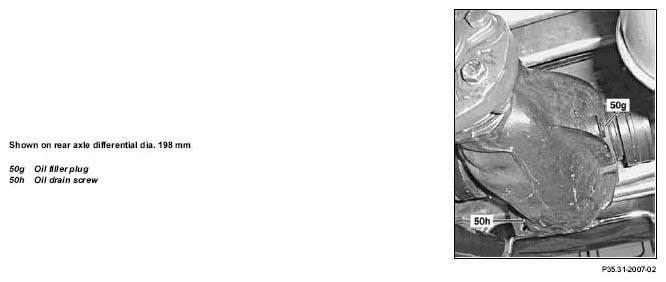

Fig 1: Identifying Rear Axle Differential Oil Filler Screw And Oil Drain Screw
Clean the new oil drain screw (50h) and the threaded hole in the rear axle differential with Loctite 7063 cleaning spray.
The oil drain screw (50h) and tapped hole must be free of oil and grease.
Apply about a drop of Omnifit sealing compound 100H on the second or third lower thread of the oil drain screw (50h).
Screw oil drain screw (50h) immediately into the rear axle differential and tighten with specified torque .

Fig 2: Applying Drop Of Omnifit Sealing Compound On The Second Or Third Lower Thread Of The Oil Drain Screw
