Remove/install camshafts - AR05.20-P-6992L
ENGINE 137.970 in MODELS 215.378, 220.178 /878
MODIFICATION NOTES
| 17.4.02 |
Value modified from 14 Nm to 1.5 Nm 1st stage and 14 Nm 2nd stage |
Value in BA05.20-P-1003-01E for engine 137 modified |
*BA05.20-P-1003-01E |
| 12.6.02 |
Figure modified from 80 Nm to 120 Nm |
Figure in BA05.10-P-1001-01H for engine 137 modified |
*BA05.10-P-1001-01H |
 |
Remove |
|
|
| 1 |

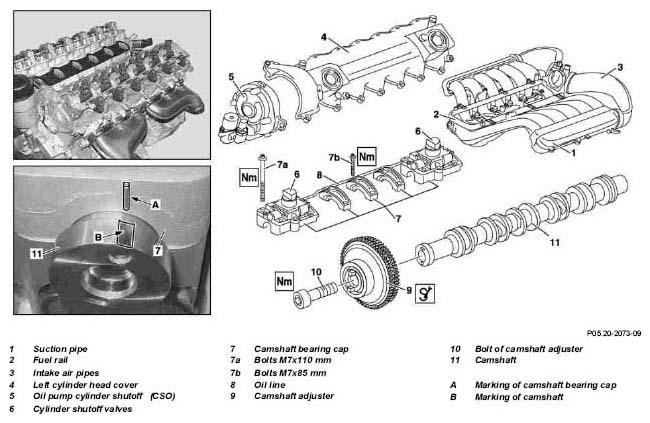

Remove intake manifold (1) |
Remove intake manifold complete with intake connection, intake air pipes and fuel rail. |
AR09.20-P-1310L |
| 2 |
Remove cylinder head covers (4) |
|
AR01.20-P-5014L |
| 3 |
Remove oil pump (5) for cylinder shutoff (CSO) |
|
AR01.30-P-5704L |
| 4 |
Remove front cover on right |
|
AR01.30-P-5700L |
| 5 |
Position piston of cylinder 1 to 30° after ignition TDC |
Crank engine at crankshaft in direction of rotation of engine until 30° marking on belt pulley/vibration damper is aligned with marking on timing case cover. The marking (A) of the camshaft bearing cap (7) must be aligned with the marking (B) of the camshaft (11).
Engine must not be cranked backwards. |
|
| 6 |
Remove camshaft adjuster (9) |
Mark camshaft adjusters and timing chain to each other with colored dots. |
AR05.20-P-7201L |
| |
|
Retaining clamp |
Figure |
| |
|
Holding device |
Figure |
| 7 |
Remove chain tensioner |
|
AR05.10-P-7800L |
| 8 |
Remove cylinder shutoff valves (6) |
|
AR01.30-P-5705L |
| 9 |
Remove camshaft bearing caps (7) |
|
AR05.20-P-7103L |
| 10 |
Remove camshaft (11) |
|
|
 |
Install |
|
|
| 11 |
Install camshaft (11) |
If the camshaft of the left cylinder head is replaced, the camshaft and rocker arm bearing bridge must also be replaced.
Oil the bearing surfaces! |
|
| 12 |
Install camshaft bearing caps (7) |
|
AR05.20-P-7103L |
| |
|
 |
*BA05.20-P-1003-01E |
| 13 |
Install cylinder shutoff valves (6) |
Installation:
Center cylinder shutoff valves on camshaft bearing caps so as to ensure a proper seal to the cylinder head cover. |
AR01.30-P-5705L |
| |
|
|
*BA05.20-P-1005-01E |
| 14 |
Set the basic position of camshaft (11) |
|
AR05.20-P-6020L |
| |
|
Double open-ended wrench |
Figure |
| |
|
Holding device |
Figure |
| 15 |
Install camshaft adjuster (9) |
Fit timing chain onto camshaft adjuster. Colored dots at camshaft adjuster and timing chain must be aligned. Take off retaining clamp. |
AR05.20-P-7201L |
| |
|
Retaining clamp |
Figure |
| |
|
|
*BA05.20-P-1001-01E |
| |
|
|
*BA05.20-P-1002-01E |
| 16 |
Install chain tensioner |
|
AR05.10-P-7800L |
| |
|
|
*BA05.10-P-1001-01H |
| 17 |
Check timing of engine |
|
AR05.10-P-6858L |
| 18 |
Install oil pump (5) for cylinder shutoff (CSO) |
|
AR01.30-P-5704L |
| |
|
|
*BA01.30-P-1001-01G |
| |
|
|
*BA01.30-P-1003-01G |
| 19 |
Install front cover on right |
|
AR01.30-P-5700L |
| |
|
|
*BA01.30-P-1001-01G |
| |
|
|
*BA01.30-P-1002-01G |
| 20 |
Install cylinder head covers (4) |
|
AR01.20-P-5014L |
| |
|
|
*BA01.20-P-1001-01E |
| 21 |
Install intake manifold (1) |
|
AR09.20-P-1310L |
| |
|
|
*BA09.20-P-1001-01G |
CRANKCASE VENTILATION, CYLINDER HEAD COVER TORQUE SPECIFICATION
| Number |
Designation |
Engine 137, 275, 285 |
| BA01.20-P-1001-01E |
Screw of cylinder head cover |
NM |
8 |
CYLINDER HEAD TORQUE SPECIFICATION
| Number |
Designation |
Engine 137 |
| BA01.30-P-1001-01G |
Front cover on right to cylinder head |
M6 |
NM |
8 |
| BA01.30-P-1002-01G |
Bolt of guide pulley to front cover on right |
M8 |
NM |
30 |
| BA01.30-P-1003-01G |
Cylinder shutoff secondary oil pump to left cylinder head |
M6 |
NM |
8 |
TIMING CHAIN, CHAIN TENSIONER TORQUE SPECIFICATION
| Number |
Designation |
Engine 137 |
| BA05.10-P-1001-01H |
Chain tensioner in cylinder head |
NM |
120 |
CAMSHAFT TORQUE SPECIFICATION
| Number |
Designation |
Engine 137 |
| BA05.20-P-1001-01E |
Bolt of left camshaft adjuster |
M14 x 80 |
1st stage |
NM |
120 |
| 2nd stage |
∠ ° |
90 |
| BA05.20-P-1002-01E |
Bolt of right camshaft adjuster |
M14 x 48 |
1st stage |
NM |
120 |
| 2nd stage |
∠ ° |
90 |
| BA05.20-P-1003-01E |
Bolt of camshaft bearing cap to cylinder head |
1st stage |
NM |
1,5 |
| |
|
2nd stage |
NM |
14 |
| BA05.20-P-1004-01E |
Bolt, camshaft bearing bridge to cylinder head |
M7x85 |
NM |
14 |
| BA05.20-P-1005-01E |
Bolt, camshaft bearing bridge to cylinder head |
M7x110 |
NM |
14 |
INTAKE MANIFOLD TORQUE SPECIFICATION
| Number |
Designation |
Engine 137 |
| BA09.20-P-1001-01G |
Bolt, intake manifold to cylinder head |
1st stage |
M6 |
NM |
8 |
| M8 |
NM |
20 |
| 2nd stage |
M6 |
NM |
8 |
| Step 3 |
M6 |
∠ ° |
90 |
