Inspecting timing of engine - AR05.10-P-6858L

ENGINE 137.970 in MODELS 215.378, 220.178 /878

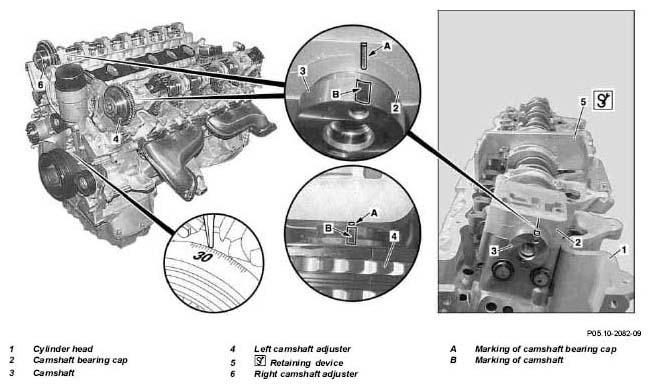

Fig 1: Identifying Cylinder Head, Camshaft And Camshaft Bearing Cap Components

	Remove/Install
1	Remove cylinder head covers		AR01.20-P-5014L
			*BA01.20-P-1001-01E
	Check
	Timing	Inlet	*BE05.20-P-1001-02F
		Outlet	*BE05.20-P-1002-02F
2	Position engine to 30° after ignition TDC of cylinder 1	Crank engine at crankshaft in direction of rotation of engine until 30° marking on belt pulley/vibration damper is aligned with marking on timing case cover. Engine must not be cranked back.
3	Check basic position of camshafts	The basic position of the camshafts is only correct if both retaining devices (5) can be installed free of stress at the left and right cylinder head. The marking (A) of the camshaft bearing cap (2) must be aligned with the marking (B) of the camshaft (3).
		Retainer If this is not possible: ↓	Figure
		Set the basic position of camshafts	AR05.20-P-6020L
4	Install in the reverse order

CRANKCASE VENTILATION, CYLINDER HEAD COVER TORQUE SPECIFICATION

Number	Designation		Engine 137, 275, 285
BA01.20-P-1001-01E	Bolt of cylinder head cover	Nm	8

INSPECTION DATA OF TIMING

Number	Designation			Engine 137 left	Engine 137 right
BE05.20-P-1001-02F	Timing of inlet valve with 2 mm play and used timing chain	opens after TDC	°CA	32	30,5
BE05.20-P-1001-02F	Timing of inlet valve with 2 mm play and used timing chain	closes after BDC	°CA	27,1	25,8
BE05.20-P-1002-02F	Timing of exhaust valve with 2 mm play and used timing chain	opens before BDC	°CA	18.2	19.6
		opens after BDC	°CA	-	-
		closes before TDC	°CA	9.5	9.5

Fig 2: Identifying Retainer (137 589 01 40 00)
