Remove/install camshafts - AR05.20-P-7201L

ENGINE 137.970 in MODELS 215.378, 220.178 /878

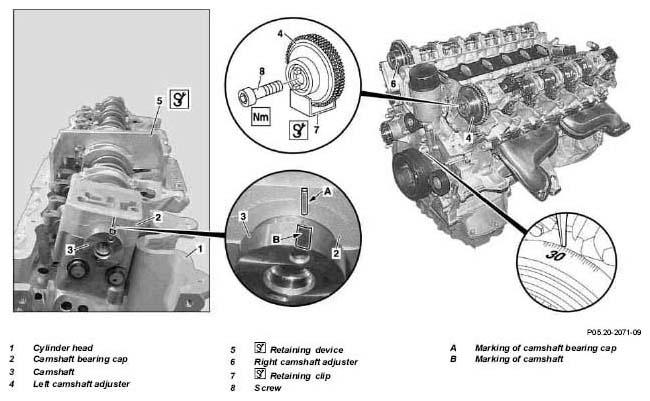

Fig 1: Identifying Camshafts Components

MODIFICATION NOTES

12.6.02

Figure modified from 80 Nm to 120 Nm

Figure in BA05.10-P-1001-01H for engine 137 modified

	Remove
1	Remove cylinder head covers		AR01.20-P-5014L
2	Remove cylinder shutoff oil pump		AR01.30-P-5704L
3	Remove front cover on right		AR01.30-P-5700L
4	Position engine to 30° after ignition TDC at cylinder 1	Rotate engine at crankshaft in direction of rotation of engine until 30° marking on belt pulley/vibration damper is aligned with marking on timing case cover. Engine must not be cranked backwards.
5	Slacken bolt (8) of left camshaft adjuster (4)	Before slackening bolt (8), fit on retaining clamp (7) at left camshaft adjuster (4). For slackening the bolt, install retaining device (5) at left cylinder head. The retaining device (5) can only be installed when the camshaft is in the basic position. The marking (A) of the camshaft bearing cap (2) must be aligned with the marking (B) of the camshaft (3).
		Retaining clamp	Figure
		Holding device	Figure
6	Slacken bolt (8) of right camshaft adjuster (6)	Before slackening bolt (8), fit on retaining clamp (7) at right camshaft adjuster (6). To slacken the bolt (8), install retaining device (5) at right cylinder head. The retaining device (5) can only be installed when the camshaft is in the basic position. The marking (A) of the camshaft bearing cap (2) must be aligned with the marking (B) of the camshaft (3).
		Retaining clamp	Figure
		Holding device	Figure
7	Remove chain tensioner		AR05.10-P-7800L
8	Remove pins of guide rails at left and right cylinder head	Remove only the pins at the inlet side.
		Impact extractor	Figure
		Threaded pin	Figure
9	Remove right camshaft adjuster (6)	Mark camshaft adjusters and timing chain to each other with colored dots. Lift timing chain off camshaft adjuster.
10	Remove left camshaft adjuster (4)	Mark camshaft adjusters and timing chain to each other with colored dots. Lift timing chain off camshaft adjuster.
	Install
11	Install right camshaft adjuster (6)	Fit timing chain onto camshaft adjuster. Colored dots at camshaft adjuster and timing chain must be aligned. Take off retaining clamp (7).
		Retaining clamp	Figure
			*BA05.20-P-1002-01E
12	Install left camshaft adjuster (4)	Fit timing chain onto camshaft adjuster. Colored dots at camshaft adjuster and timing chain must be aligned. Take off retaining clamp (7).
		Retaining clamp	Figure
			*BA05.20-P-1001-01E
13	Take off retaining devices (5) at left and right cylinder head		Figure
14	Install pins of guide rails	Do not mix up pins.
15	Install chain tensioner		AR05.10-P-7800L
			*BA05.10-P-1001-01H
16	Check timing of engine		AR05.10-P-6858L
17	Install oil pump of cylinder shutoff		AR01.30-P-5704L
			*BA01.30-P-1001-01G
			*BA01.30-P-1003-01G
18	Install front cover on right		AR01.30-P-5700L
			*BA01.30-P-1001-01G
			*BA01.30-P-1002-01G
19	Install cylinder head cover		AR01.20-P-5014L
			*BA01.20-P-1001-01E

CRANKCASE VENTILATION, CYLINDER HEAD COVER TORQUE SPECIFICATION

Number	Designation		Engine 137, 275, 285
BA01.20-P-1001-01E	Screw of cylinder head cover	NM	8

CYLINDER HEAD TORQUE SPECIFICATION

Number	Designation			Engine 137
BA01.30-P-1001-01G	Front cover on right to cylinder head	M6	NM	8
BA01.30-P-1002-01G	Bolt of guide pulley to front cover on right	M8	NM	30
BA01.30-P-1003-01G	Cylinder shutoff secondary oil pump to left cylinder head	M6	NM	8

TIMING CHAIN, CHAIN TENSIONER TORQUE SPECIFICATION

Number	Designation		Engine 137
BA05.10-P-1001-01H	Chain tensioner in cylinder head	NM	120

CAMSHAFT TORQUE SPECIFICATION

Number	Designation				Engine 137
BA05.20-P-1001-01E	Bolt of left camshaft adjuster	M14 x 80	1st stage	NM	120
BA05.20-P-1001-01E	Bolt of left camshaft adjuster	M14 x 80	2nd stage	∠ °	90
BA05.20-P-1002-01E	Bolt of right camshaft adjuster	M14 x 48	1st stage	NM	120
BA05.20-P-1002-01E	Bolt of right camshaft adjuster	M14 x 48	2nd stage	∠ °	90

Fig 2: Identifying Retaining Clamp (137 589 00 40 00)

Fig 3: Identifying Retainer (137 589 01 40 00)

Fig 4: Identifying Double Open-End Wrench (104 589 01 01 00)

Fig 5: Identifying Impact Extractor (116 589 20 33 00)

Fig 6: Identifying Threaded Bolt (116 589 01 34 00)
