Fuse and relay box, as-built configuration (204.0/2/3/9 as of model year 2009) - GF54.15-P-0800CE

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2014 Mercedes-Benz C63 AMG, 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, and 2011 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0/2 as of model year 2009

/YoM 08

MODEL 204.3

MODEL 204.9

Model 204.0/2/3, shown on model 204.0

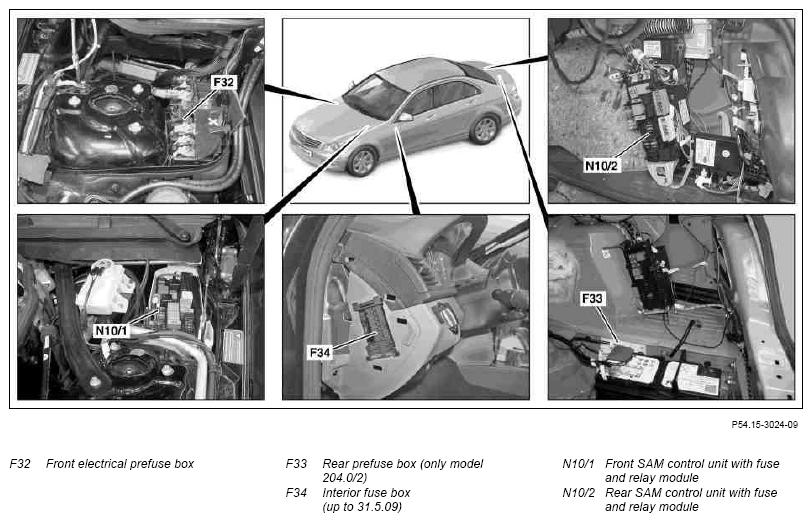

Fig 1: Identifying Fuse And Relay Box Components (Model 204.0)

Courtesy of MERCEDES-BENZ USA

Model 204.9

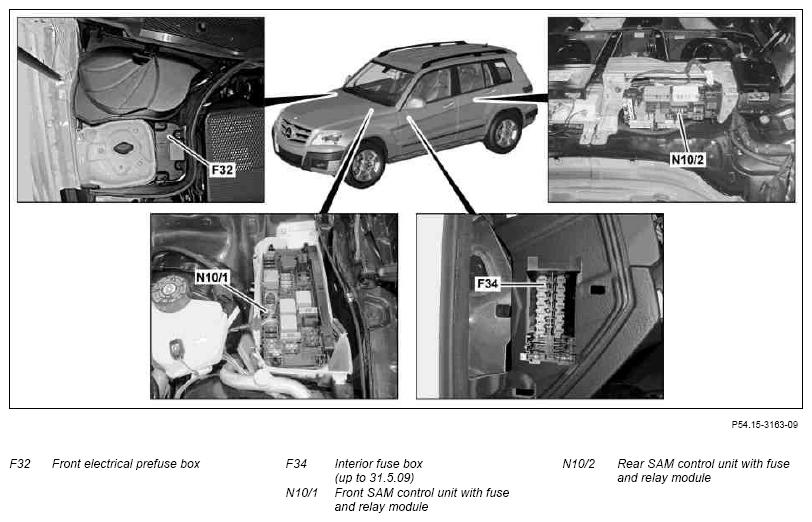

Fig 2: Identifying Fuse And Relay Box Components (Model 204.9)

Courtesy of MERCEDES-BENZ USA

Great Britain version, Shown on model 204.0

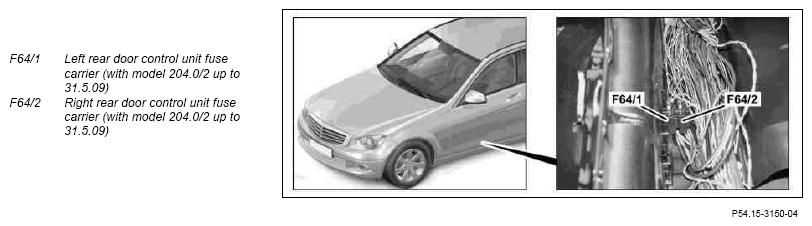

Fig 3: Identifying Rear Door Control Unit Fuse Carriers

Courtesy of MERCEDES-BENZ USA

The rear door control unit fuse carrier is located on the driver-side in the main wiring harness.

The left rear door control unit fuse carrier safeguards the left rear door control unit (N69/3) and the right rear door control unit fuse carrier safeguards the right rear door control unit (N69/4) with I = 30 amps.

Fuse assignment of front prefuse box	F32 up to 31.5.09	GF54.15-P-1256-07CE
	As of 1.6.09	GF54.15-P-1256-07CEA
Fuse assignment of rear prefuse box	F33 On model 204.0/2	GF54.15-P-1256-08CE
Fuse assignment of fuse box in left of cockpit	F34 up to 31.5.09	GF54.15-P-1256-13CE
Fuse assignment of fuse and relay box in left engine compartment	N10/1	GF54.15-P-1256-03CE
Fuse assignment of fuse and relay box in trunk	N10/2	GF54.15-P-1256-06CE
Relay assignment of fuse and relay box in left side of engine compartment	N10/1	GF54.15-P-1257-03CE
Relay assignment of fuse and relay box in trunk	N10/2	GF54.15-P-1257-04CE
