Fuse assignment of front prefuse box (204.0/2 as of year 2010; 204.3, 204.9 as of 2010) - GF54.15-P-1256-07CEA

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2014 Mercedes-Benz C63 AMG, 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, and 2011 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0/2 as of model year 2010 MODEL 204.3 MODEL 204.9 as of model year 2010

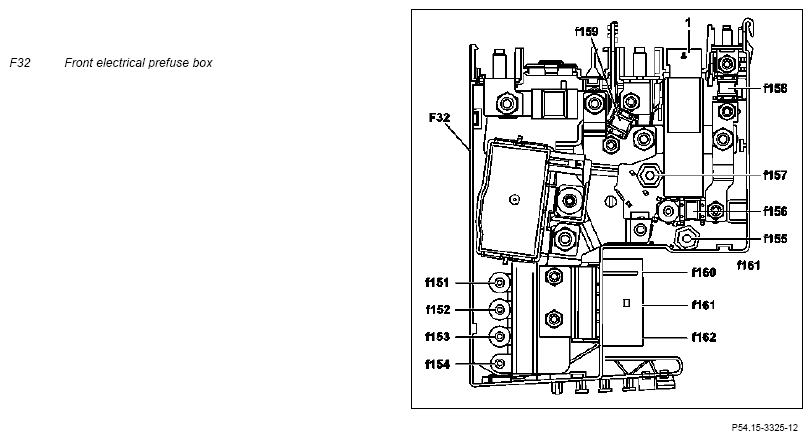

Shown without code (B03) ECO start/stop function

Fig 1: Identifying Front Electrical Pre-Fuse Box Without Code (B03) ECO Start/Stop Function

Courtesy of MERCEDES-BENZ USA

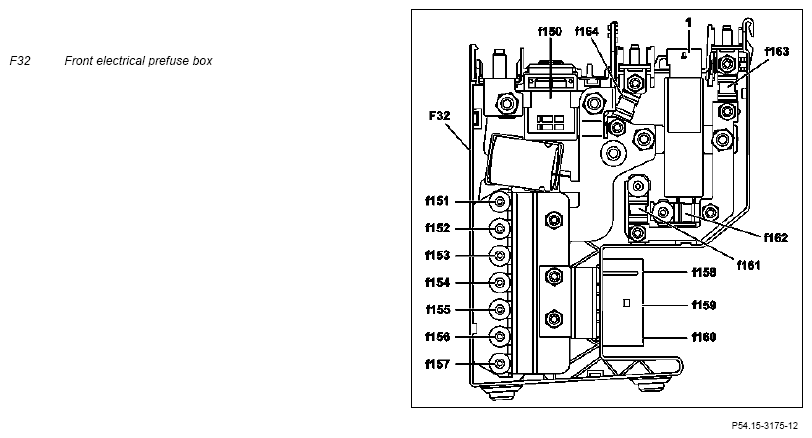

Shown with code (B03) ECO start/stop function

Fig 2: Identifying Front Electrical Pre-Fuse Box With Code (B03) ECO Start/Stop Function

Courtesy of MERCEDES-BENZ USA

Fuse	Clamping device	Cable ID (cable fused)	Fused function	Rating in amperes (A)
f150	30	-	Valid without code (B03) ECO start/stop function: Pyrofuse 88 (F32f88)	400
		35, 0	Valid for code (B03) ECO start/stop function: Alternator (G2) Starter (M1)	200
f151	30	10.0 RD	Combustion engine fan motor and air conditioning with integrated control (M4/7)	100
f152	30	16.0 RD	Front SAM control unit with fuse and relay module (N10/1)	150
f153	30		Valid without code (B03) ECO start/stop function: Spare	100
		6.0 RD	Valid for code (B03) ECO start/stop function and front battery position: Front SAM control unit with fuse and relay module (N10/1)	60
f154	30z		Valid without code (B03) ECO start/stop function and front battery position: Front SAM control unit with fuse and relay module (N10/1)	60
		16.0 RD	Valid for diesel engine and code (B03) ECO start/stop function: PTC heater booster (R22/3)	150
f155	30	-	Valid without code (B03) ECO start/stop function: Spare	50
		-	Valid for code (B03) ECO start/stop function: Spare	100
f156	30	16.0 RD	Valid for diesel engine without code (B03) ECO start/stop function: PTC heater booster (R22/3)	150
		30g	Valid for code (B03) ECO start/stop function: Front SAM control unit with fuse and relay module (N10/1)	100
f157	30		Valid for model 204.902/982/984 without code (B03) ECO start/stop function: Electrohydraulic power steering (A91/1)	100
		12.0 RD	Valid for code (B03) ECO start/stop function:
		-	Spare
f158		16.0 RD	Valid without code (B03) ECO start/stop function:
	30	4.0 RD	Blower regulator (A32n1)	50
	30g		Valid for code (B03) ECO start/stop function: Rear SAM control unit with fuse and relay module (N10/2)	150
f159	30		Valid for code (965) Electrical preinstallation for rental vehicles without code (B03) ECO start/stop function:
		4.0 RDGN	Special-purpose vehicle multifunction control unit (N26/9)	50
		25.0 RD	Valid for code (B03) ECO start/stop function: Additional battery relay (K57/2)	200
f160	30		Valid without code (B03) ECO start/stop function:
		-	Spare	60
		4.0 RD	Valid for code (B03) ECO start/stop function: Blower regulator (A32n1)	50
f161			Valid without code (B03) ECO start/stop function:
	30g	16.0 RDWH	Front SAM control unit with fuse and relay module (N10/1)
			Valid for code (965) Electrical preinstallation for rental vehicles and code (B03) ECO start/stop function:
	30	4.0 RDGN	Special-purpose vehicle multifunction control unit (N26/9)	50
f162			Valid without code (B03) ECO start/stop function:
	30g	-	Spare	100
			Valid for code (B03) ECO start/stop function:
	30	-	Spare	60
f163	30g	16.0 RD	Valid without code (B03) ECO start/stop function: Rear SAM control unit with fuse and relay module (N10/2)	150
f164	30	10.0 RD	Valid without code (B03) ECO start/stop function: Rear SAM control unit with fuse and relay module (N10/2)	80
