Relay assignment of fuse and relay box in trunk (204.0/2 as of 2009; 204.3, 204.9) - GF54.15-P-1257-04CE

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2014 Mercedes-Benz C63 AMG, 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, and 2011 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0/2 as of model year 2009 MODEL 204.3 MODEL 204.9

up to 31.5.09

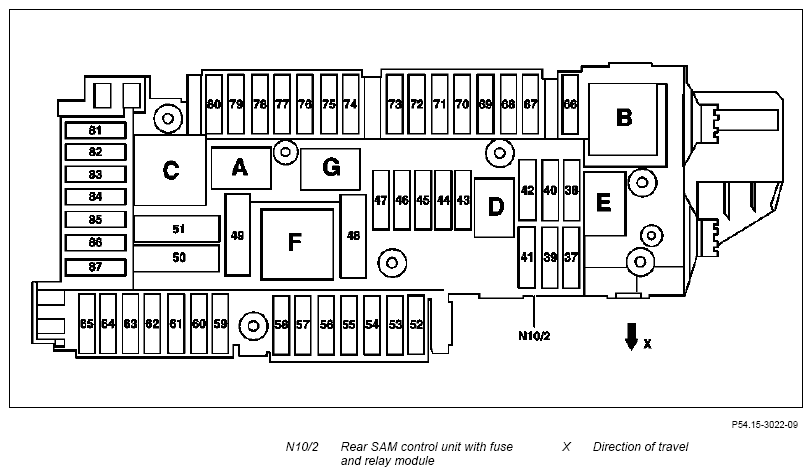

Fig 1: Identifying Fuse And Relay Box In Trunk Relay Assignment (Up To 31.5.09)

Courtesy of MERCEDES-BENZ USA

As of 1.6.09

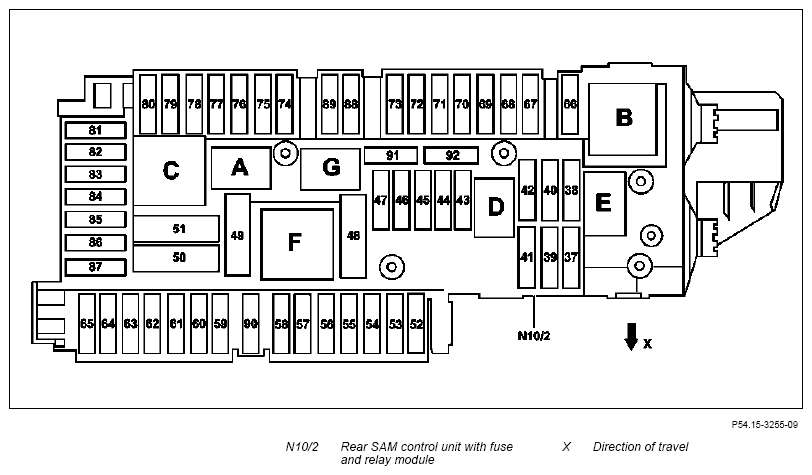

Fig 2: Identifying Fuse And Relay Box In Trunk Relay Assignment (As Of 1.6.09)

Courtesy of MERCEDES-BENZ USA

Socket	Designation
A	Terminal 15 relay (N10/2kA)
B	Circuit 15R relay (1) (N10/2kB)
C	Heated rear window relay (N10/2kC)
D	Valid for diesel engine: Fuel pump relay (N10/2kD)
R	Valid for model 204.2/9: (N10/2kE Tailgate windshield wiper relay)
F	Valid without code (275) Memory package (driver seat, steering column, mirrors): Seat adjustment relay (N10/2kF)
G	Circuit 15R relay (2) (N10/2kG)
