Fuse assignment of front prefuse box (204.0/2 as of year 2009 up to year 2010; 204.9 up to year 2010) - GF54.15-P-1256-07CE

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2014 Mercedes-Benz C63 AMG, 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, and 2011 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0/2 as of model year 2009 up to model year 2010 MODEL 204.9 up to model year 2010

Front prefuse

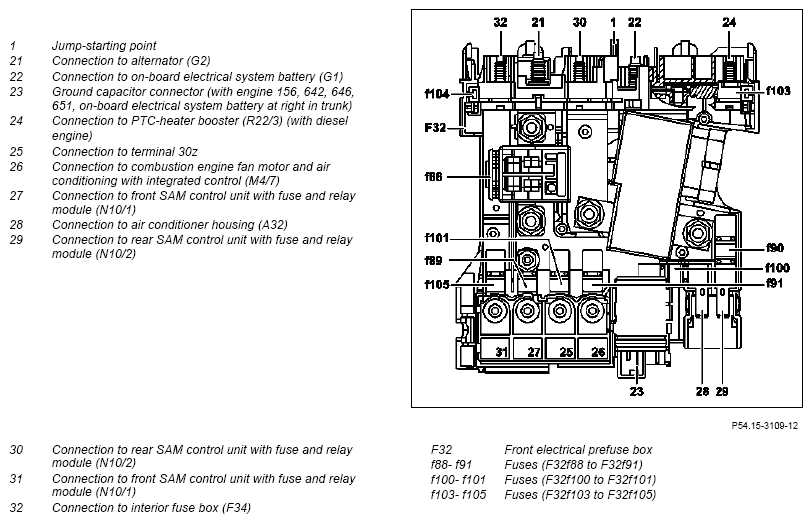

Fig 1: Identifying Front Pre-Fuse Box Fuse Assignments

Courtesy of MERCEDES-BENZ USA

Fuse	Clamping device	Cable ID (cable fused)	Fused function	Rating in amperes (A)
f88	30	35.0 BK	Alternator (G2) Starter (M1)	Pyrofuse
f89	30	16.0 RD	Front SAM control unit with fuse and relay module (N10/1)	125
f90	30	6.0 RD	Rear SAM control unit with fuse and relay module (N10/2)	40
f91	30	10.0 RD	Combustion engine fan motor and air conditioning with integrated control (M4/7)	80
f100	30	4.0 RD	Air conditioner housing (A32)	40
f101	30z	6.0 RD	Valid for gasoline engine: Front SAM control unit with fuse and relay module (N10/1)	60
f103	30	16.0 RD	Valid for diesel engine: PTC heater booster (R22/3)	150
f104	30g	10.0 RD	Interior fuse box (F34)	70
f105	30g	16.0 RD	Front SAM control unit with fuse and relay module (N10/1)	100
f106	30g	16.0 RD	Rear SAM control unit with fuse and relay module (N10/2)	150
f107	30	-	Spare	-
f108	30	-	Spare	-
f109	30	-	Spare	-
f110	30	-	Spare	-
