Forward travel, function - GF54.65-P-4000Q
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODELS 209.3 /4 with CODE (220) Parktronic System (PTS)
Shown on model 209.3
Function requirements
- Circuit 15 ON
- Vehicle speed ≤16 km/h
- Parking brake not operated
- Reverse gear not engaged (on transmission 716)
- Selector lever in position "D" (with transmission 722)
Function

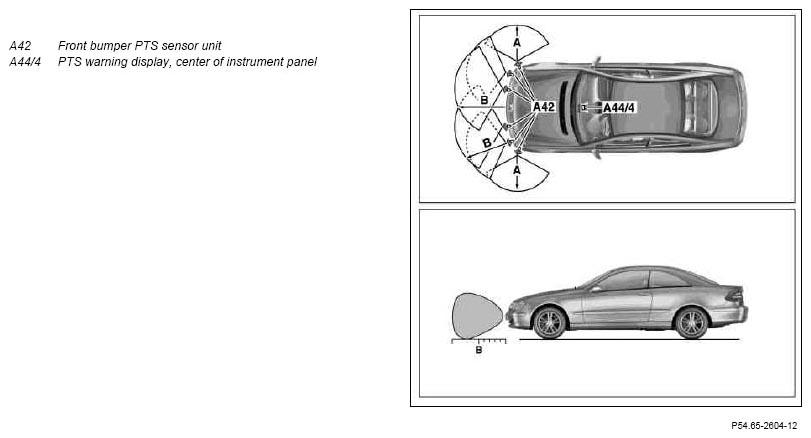

Area A and B in front of the vehicle is monitored when driving forward.
The front bumper PTS sensor unit (A42) detects obstacles:
- in area A (15 cm to 60 cm)
- in area B (20 cm to 100 cm)
Warning information
The Parktronic control unit actuates the center instrument panel PTS warning indicator (A44/4). Depending on the distance to the obstacle, visual and, if necessary, acoustic warning information is given out.
Deactivation
The Parktronic system (PTS) can be switched off and on manually via the PTS OFF switch in the upper control panel control unit, feedback takes place via an LED in the PTS OFF switch.
| PTS control unit, location/task | GF54.65-P-4100Q | |
| Sensors, location/task/function | GF54.65-P-4102T | |
| Warning display, location/task/design/function | PTS warning display, center of instrument panel | GF54.65-P-4104T |
| Upper control panel control unit, location/task design/function | GF54.21-P-4105Q |
