PTS control module, location / task - GF54.65-P-4100Q

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 209.3 /4 with CODE (220a) Parktronic system (PTS)

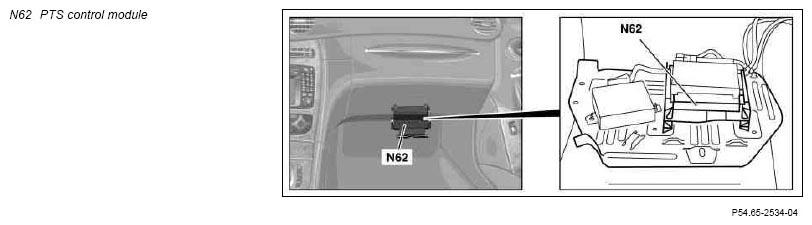

Fig 1: Locating PTS Control Module

Courtesy of MERCEDES-BENZ USA

PTS control module, location	The Parktronic control module (N62) is located under the footwell base plate on the passenger-side.
PTS control module, task	Voltage supply and actuation of sensors and PTS warning displays Evaluation of echo journey times Bidirectional data transfer from and to the PTS warning displays System check Data exchange with CAN class B
