Warning display, location / task / design / function - GF54.65-P-4104T
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 209.3 /4 with CODE (220a) Parktronic System (PTS) center instrument panel PTS warning indicator

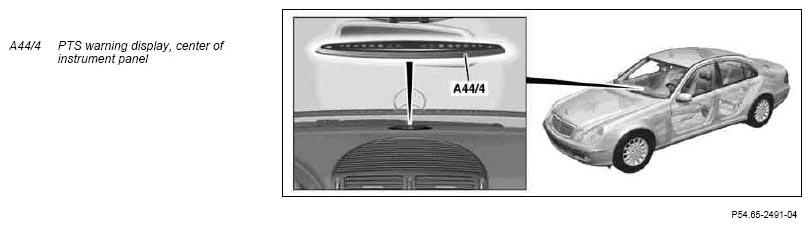

Shown on model 211.0
| Warning display, location | The center instrument panel PTS warning indicator (A44/4) is located in the center of the instrument panel. | |
| Warning display, task | Displays of the distance to an obstacle in the front monitoring range. When the minimum distance is not reached, output of an acoustic signal. |
|
| Warning display, design | The center instrument panel PTS warning indicator (A44/4) consists of the LCD bar display (model 209) or the LEDs (model 211), the frame, the sound source and microprocessor which evaluates and converts the data telegrams of the Parktronic control unit. | |
| Warning display, function | Models 209.3/4 | GF54.65-P-4104-01Q |
