Adjusting vario-roof - AR77.50-P-3030G

MODEL 170

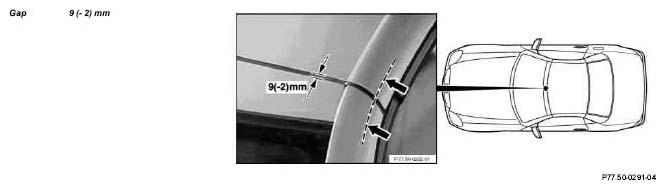

Fig 1: Identifying Gap Between Vario-Roof And Cross Member

Fig 2: Locating Vario-Roof Contour

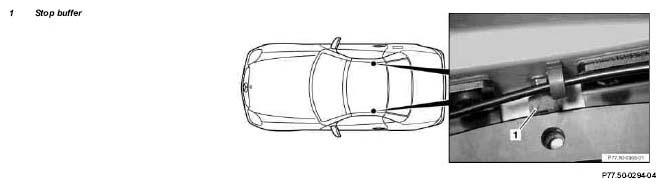

Fig 3: Identifying Stop Buffer

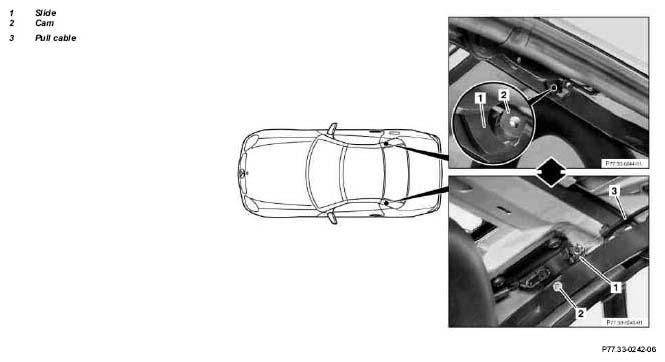

Fig 4: Identifying Slide, Cam And Pull Cable

	Adjustment
1	Adjust gap between vario-roof and cross member above windshield		AR77.50-P-3035G
2	Adjust vario-roof contour		AR77.50-P-3040G
3	Adjust stop buffer on vario-roof		AR77.50-P-3050G
4	Adjust catch on C-pillar		AR77.50-P-3045G
