Adjusting contour of Vario roof - AR77.50-P-3040G

MODEL 170

Check roof contour Use template for Vario roof

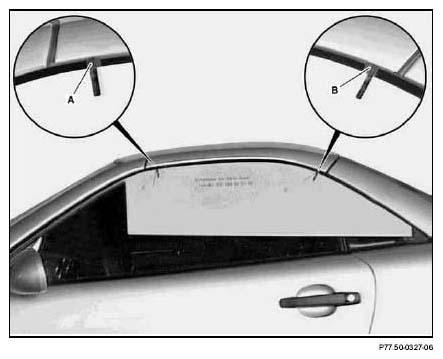

Fig 1: Adjusting Contour Of Vario Roof (1 Of 2)

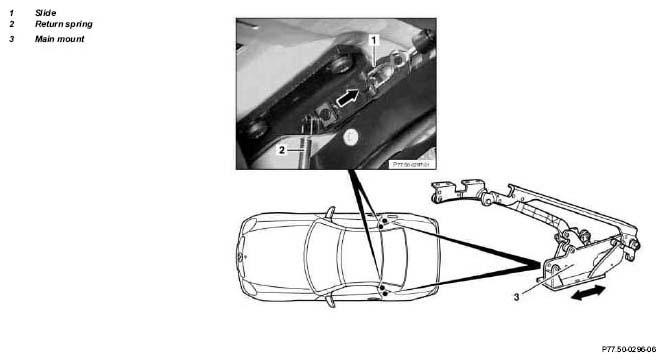

Fig 2: Adjusting Contour Of Vario Roof (2 Of 2)

	Adjustment
1	Remove C-pillar cover on Vario roof		AR68.30-P-4500G
2	Remove cover above B-pillar		AR77.50-P-3000G
3	Unhook return spring (2) and push slide (1) up
4	Loosen bolts on main mount (3) and move main mount (3) toward rear or toward front	When moving main mount (3), the slide (1) should not be locked
5	Tighten bolts on main mount (3)		*BA77.33-P-1007-01A
6	Hook in return spring (2), close Vario roof and check Vario roof contour with template	Position template on rails. When hooking in the return spring (2) ensure that the sleeve for the control cable is located in the bracket.	Figure
7	Open and close Vario roof	When locking the Vario roof should not be subject to excessive pressure downward in the area of the separation joint between the front and rear sections of the roof. Check while the rear side window is not yet in contact with the roof seal, if necessary ↓
		Check adjustment of stop buffer on Vario roof ↓	AR77.50-P-3050G
		Check adjustment of catch on C-pillar ↓	AR77.50-P-3045G
		Check adjustment of crank windows ↓	AR72.10-P-1950G
		Check adjustment of rear side window	AR67.30-P-4200G
8	Install cover above B-pillar		AR77.50-P-3000G
9	Install C-pillar paneling on Vario roof		AR68.30-P-4500G

Vario roof mechanical system

Fig 3: Identifying Template For Vario Roof (170 589 04 23 00)
