Adjusting catch on C-pillar - AR77.50-P-3045G

MODEL 170

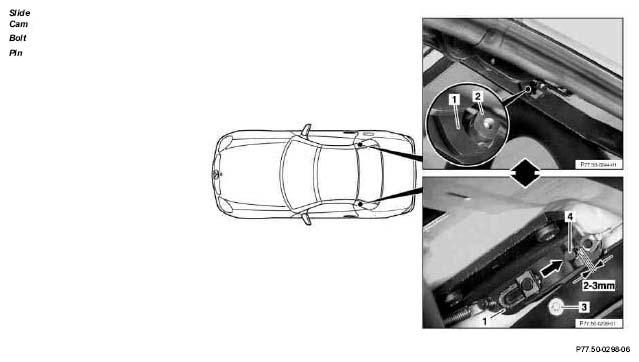

Fig 1: Adjusting Catch On C-Pillar

	Adjustment
1	Remove C-pillar paneling on vario-roof and close vario-roof		AR68.30-P-4500G
2	Push slide (1) up in direction of arrow and release	Interval between pin (4) and oblong hole in slide (1) 2-3 mm
3	Loosen screw (3)
4	Adjust cam (2)	Turn cam (2) to left or right to obtain interval of 2-3 mm after releasing slide (1)
5	Open and close vario-roof a number of times	If the vario-roof is subjected to excessive pressure downward in the area of the separation joint between the front section and rear section of the roof when locking, ↓
		adjust stop buffer on vario-roof	AR77.50-P-3050G
6	Install C-pillar paneling on vario-roof		AR68.30-P-4500G
