Removing and installing C-pillar paneling on Vario-roof - AR68.30-P-4500G

MODEL 170

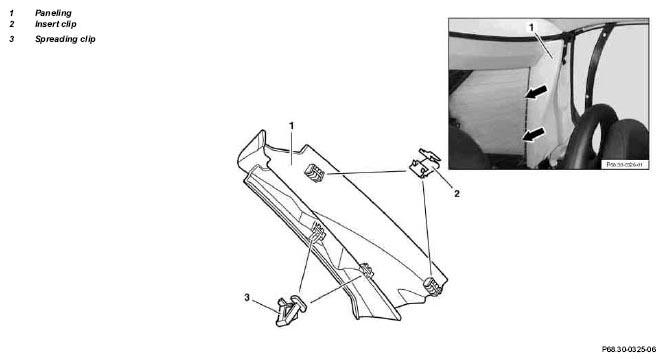

Fig 1: Identifying C-Pillar Paneling On Vario-Roof Remove/Install Components

	Removal, installation
1	Move roof to installation position with roof switch	Leave ignition switched on. The Vario-roof remains in this position for 7 minutes after releasing the roof switch (stop function). It can be stopped in this position for another 7 minutes by pressing the roof switch again.
2	Remove paneling (1) in direction of arrow
3	Reinstall in opposite order	Install insert clip (2) on Vario-roof
