Adjusting control cable for lock on C-pillar - AR77.33-P-3470G

MODEL 170

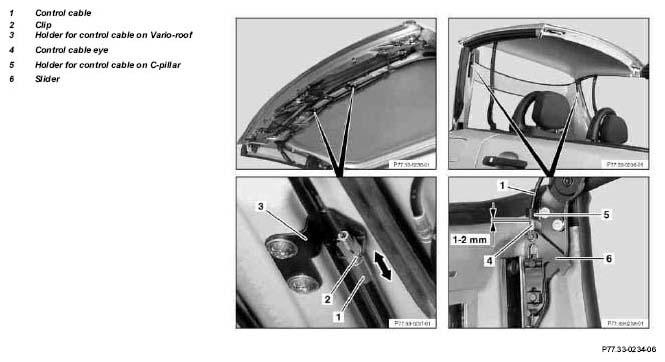

Fig 1: Adjusting Control Cable For Lock On C-Pillar

	Disassembly
1	Remove paneling at front of Vario-roof		AR68.30-P-4350G
2	Remove C-pillar paneling at Vario-roof		AR68.30-P-4500G
3	Move Vario-roof to 90° position with roof switch
4	Check adjustment of control cable (1)	Distance between eye (4) and holder (5): 1-2 mm
	Adjusting
5	Pull clip (2) off of holder (3)
6	Adjust control cable (1) in direction of arrow until distance between eye (4) and holder (5) is reached and reattach clip (2)
7	Actuate Vario-roof a number of times with the roof switch	Check distance between eye (4) and holder (5), if necessary ↓ correct adjustment of control cable (1) If the eye (4) is in contact with the holder (5), the control cable can be damaged when the roof is actuated
	Assembly
8	Install C-pillar paneling at Vario-roof		AR68.30-P-4500G
9	Install paneling at front of Vario-roof		AR68.30-P-4350G
10	Install paneling at front side of Vario-roof		AR68.30-P-4340G
