Removing and installing paneling at side front on Vario-roof - AR68.30-P-4340G

MODEL 170

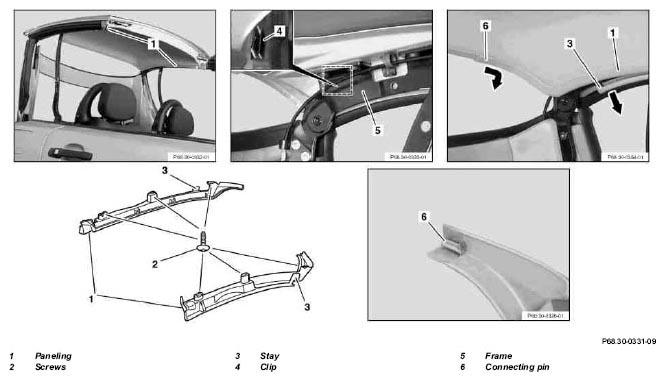

Fig 1: Identifying Paneling At Side Front On Vario-Roof Remove/Install Components

	Removal, installation
1	Move roof to installation position with roof switch	Leave ignition switched on. The Vario-roof remains in this position for 7 minutes after releasing the roof switch (stop function). It can be stopped in this position for another 7 minutes by pressing the roof switch again.
2	Unscrew screws (2)
3	Press stay (3) off downward out of clip (4) behind frame (5)
4	Unhook connecting pin (6) in direction of arrow and remove paneling (1)
5	Reinstall in opposite order
