Removing and installing paneling at front of Vario-roof - AR68.30-P-4350G

MODEL 170

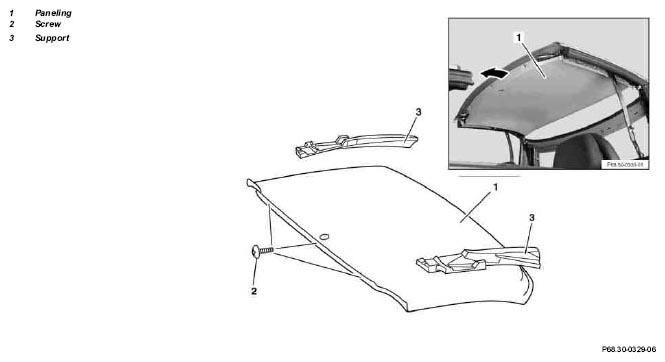

Fig 1: Identifying Paneling At Front Of Vario-Roof Remove/Install Components

	Removal, installation
1	Remove paneling at side front of Vario-roof		AR68.30-P-4340G
2	Move roof to installation position with roof switch	Leave ignition switched on. The Vario-roof remains in this position for 7 minutes after releasing the roof switch (stop function). It can be stopped in this position for another 7 minutes by pressing the roof switch again.
3	Unscrew screws (2)
4	Remove paneling (1) from rail at rear of roof
5	Reinstall in opposite order	Properly position support (3) on Vario-roof at side
