Installing shut-off relay for anti-towing sensor actuation - SM80.50-P-0001B
MODEL 170 with CODE (882b) Interior motion sensor (only with ATA) except CODE (808) Model year 1998

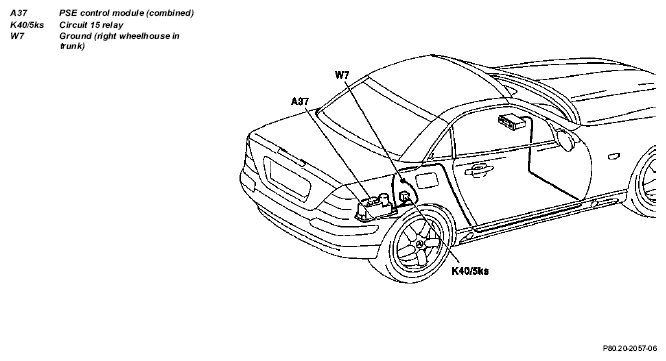

| Removal | |||
| 1 | Connect quiescent current retention unit | *WH58.30-Z-1012-09A | |
| 2 | Disconnect ground lead from battery | AR54.10-P-0003A | |
| 3 | Remove trunk lid paneling at bottom | ||
| 4 | Remove right trunk lid paneling | AR68.30-P-4800G | |
| 5 | Remove right front seat | AR91.10-P-1000G | |
| 6 | Lift carpeting on passenger side | ||
| 7 | Remove right foot support | ||
| 8 | Remove cover below instrument panel on right | AR68.10-P-1520G | |
| 9 | Remove radio | ||
| Installation | |||
| 10 | Install wiring harness shut-off relay for antitowing sensor actuation and connect | SM80.50-P-0001-01B | |
| 11 | Reinstall in opposite order |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1012-09A | Quiescent current retention unit |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| A 002 542 34 19 | Relay | 1 |
| A 007 545 92 26 | Housing with mount | 1 |
| A 008 545 55 26 | Contact spring | as required |
| A 011 545 84 26 | Cable terminal | 4 |
| A 008 545 82 26 | Cable terminal | 1 |
| N 046 225 008 100 | Round cable terminal, dia. 6.5 mm | 1 |
| Brown wire, 0.5 mm2 | as required | |
| Gray/green wire, 0.5 mm2 | as required | |
| Pink/green wire, 0.5 mm2 | as required |
